Nov 20, 2020
- 0 comment - By ZhangRay

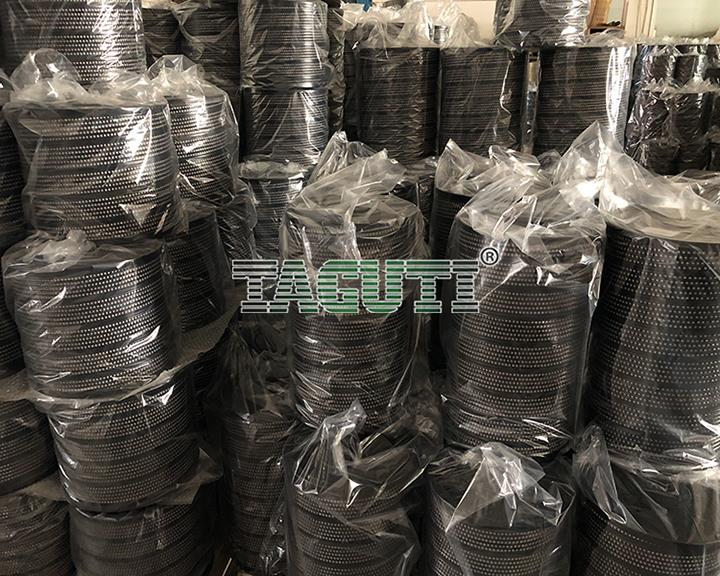

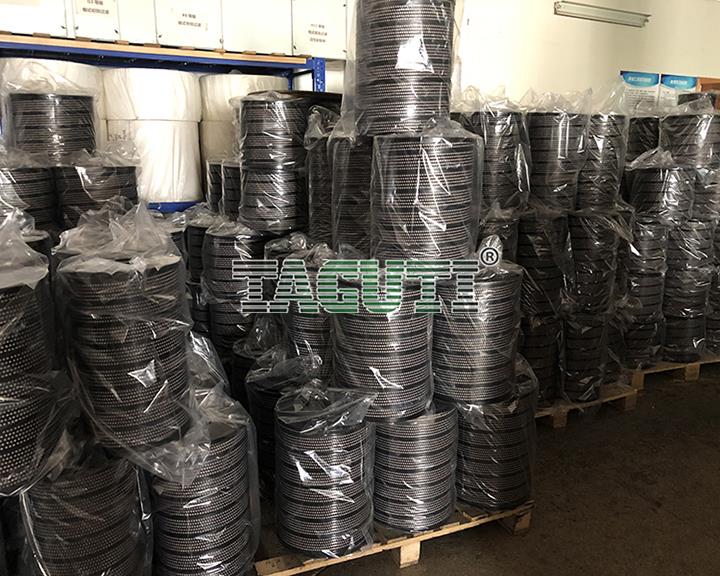

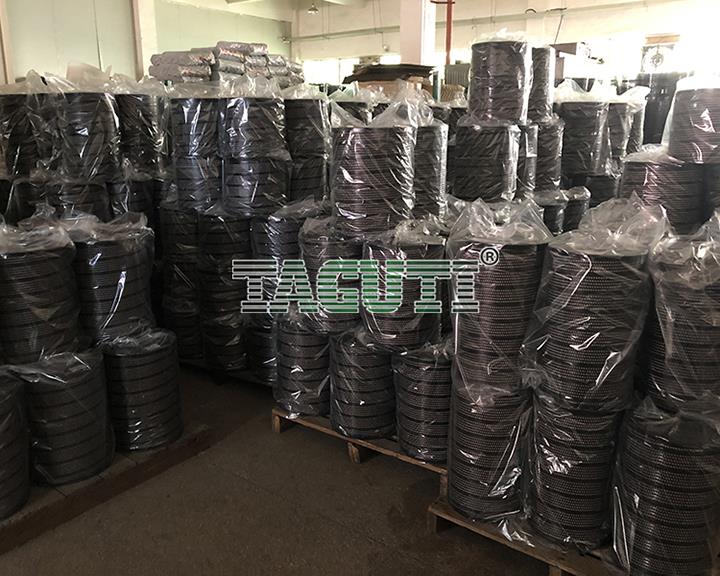

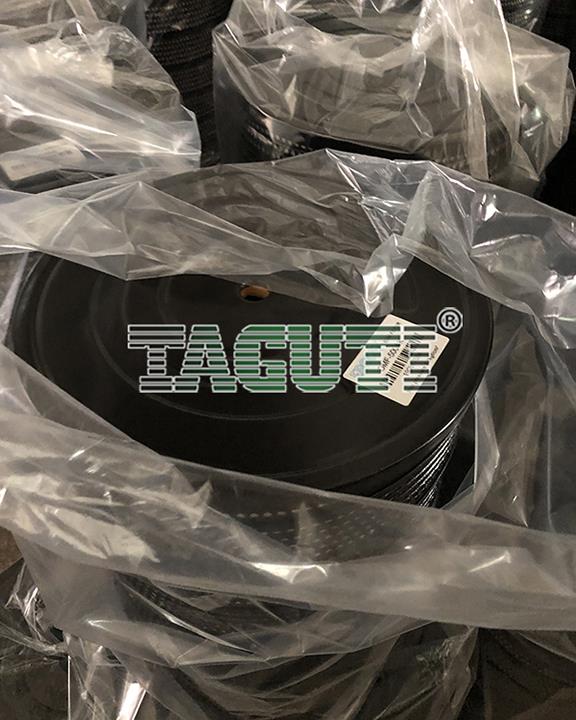

EDM Filter Cartridge OEM Service Logo Box From TAGUTI EDM Supplies

We offer free OEM service for wire cut edm filter cartridge from our TAGUTI edm filter production factory; we produce all kinds of filters for wire cut edm machines, such as Agie Charmilles, Sodick, Mitsubishi, Fanuc, Makino, AccuteX, Chmer, Seibu, etc. The filter paper is chosen with high accuracy and strictly imported selection from Germany and Japan. Please check our "EDM Parts" column and find the filters model in demand; we would like to provide the stable and profitable edm filters.
