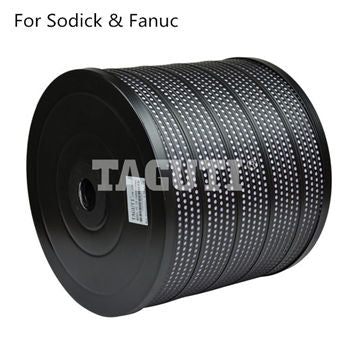

SHF-25E EDM Filter Sodick Fanuc H341070 H341490 135007110 A99L-0107-0003

H341490/15, H341290/3, 135007110 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$32.50

H341490/15, H341290/3, 135007110 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-19

◆ Reference Number: 04.10.470, 04.10.482, 04.10.608, 04.10.708, 04.10.722, 04.10.724, 04.10.730, 04.04.007,H341070/1, H341070/20, H341490/5, H341490/15, H341290/3, 135007110, 951100015, 951100067, A99L-0107-0003, 2064736,SHF-25E, DW-19

◆ Dimensions: Φ340*Φ46*300mm

◆ Connection system: Without connection nipple

◆ Flow direction: Inside to outside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Macro pleats

◆ Net Weight: 6.20kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Fanuc: Fanuc O, P, Q, R, S, T, V, α-0A with AWF, α-0A without AWF, α-0B with AWF

◆ Applicable Machine For Sodick: Sodick A300, A300W, A320, A320D, A325, A350, A350W, A500, A500W, A500WP, A530D, A535, A600, A600W, A600WP, A750, A750W, AD325L, AG400L, AG600L, AP250L, AP450L, AP500L, AQ300L, AQ325L, AQ327L, AQ360L, AQ400L, AQ535L, AQ537L, AQ550L, AQ560L, AQ600, AQ750L, AQ800L, AQ900L, BF250, BF275, BF280, BF280L, SL400G, SL400Q, SL600G, SL600Q

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
