The diamond wire guide of small hole EDM drilling machines mainly plays a guiding role in the function of the up, down and rotation of brass or copper electrode tubes. The commonly used materials of diamond wire guide are ceramic and ruby. It is the strict aperture precision control and guide angle that make the wire guide smooth in cooperation with brass or copper electrode tubes. In addition, TAGUTI also provides a customized service of non-standard small hole EDM drill guides for customers.

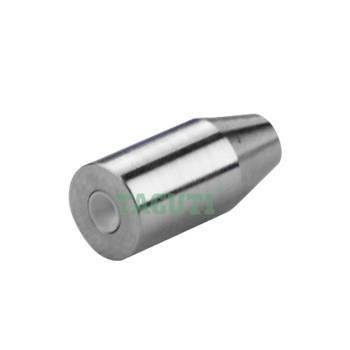

Wire guide diamond or ruby guide roller for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and hard to break. TAGUTI Number：CZ140 Outer Size：Φ12*25mm Diameter Range：Φ0.10-3.00mm Outer Case Material：Stainless steel...
Agie Charmilles & Sodick Wire guide diamond or ruby guide roller for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and hard to break. ◆ Commodity: TS guide OD10*25mm...
◆ Commodity: Rubber seals OD7*9mm
◆ TAGUTI number:
◆ OEM numbers:
◆ Packing quantity: 1 set(10 pcs)
◆ Machine type: Charmilles SH2,SH2 CNC, Sodick K1BL, K1BN, K1C, K1CN, K1CS, K2CN, K2PN, K3BL, K3BN, K3CN, K3HN, K3PN
◆ Application: EDM drilling
◆ Category: Seal
Wire guide diamond or ruby guide roller for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and hard to break. TAGUTI Number：S140 Outer Size：Φ16*Φ12*35mm Diameter Range：Φ0.30-3.00mm Outer Case Material：Stainless steel...
Wire guide diamond or ruby guide roller for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and hard to break. TAGUTI Number：S140C Outer Size：Φ14*25mm Diameter Range：Φ0.30-3.00mm Outer Case Material：Stainless steel...
◆TAGUTI Number：Z140
◆Outer Size：Φ6*Φ8*30mm
◆Diameter Range：Φ0.30-3.00mm
◆Outer Case Material：Stainless steel
◆Inner Core Material：Ceramic
※Special size can be customized should you have the demand!
Wire guide diamond or ruby guide roller for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and hard to break. ◆TAGUTI Number：Z140A ◆Outer SizeΦ6*30mm ◆Diameter Range：Φ0.30-1.00mm ◆Outer Case Material：Stainless...
Wire guide diamond or ruby guide roller for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and hard to break. ◆TAGUTI Number：ZZ140 ◆Outer Size：Φ12*40mm ◆Diameter Range：Φ0.30-3.00mm ◆Outer Case Material：Stainless...
