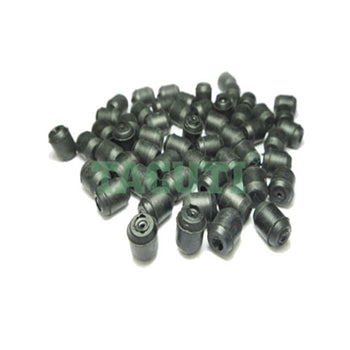

Rubber Seals For Agie Charmilles & Sodick EDM Drilling | TAGUTI

◆ Commodity: Rubber seals OD7*9mm ◆ TAGUTI number: ◆ OEM numbers: ◆ Packing quantity: 1 set(10 pcs) ◆ Machine type: Charmilles SH2,SH2 CNC, Sodick K1BL,...

Applicable to: Sodick Type: Rubber seal SKU: SET

1 set=10 pcs
