Description

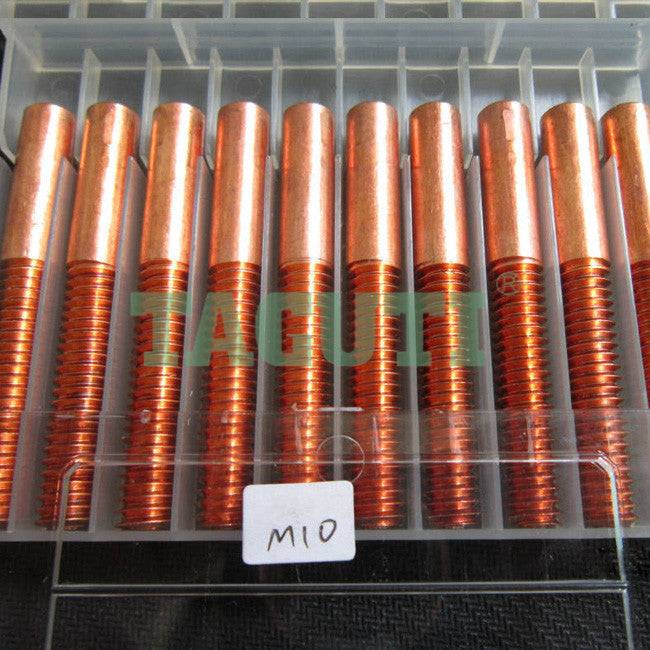

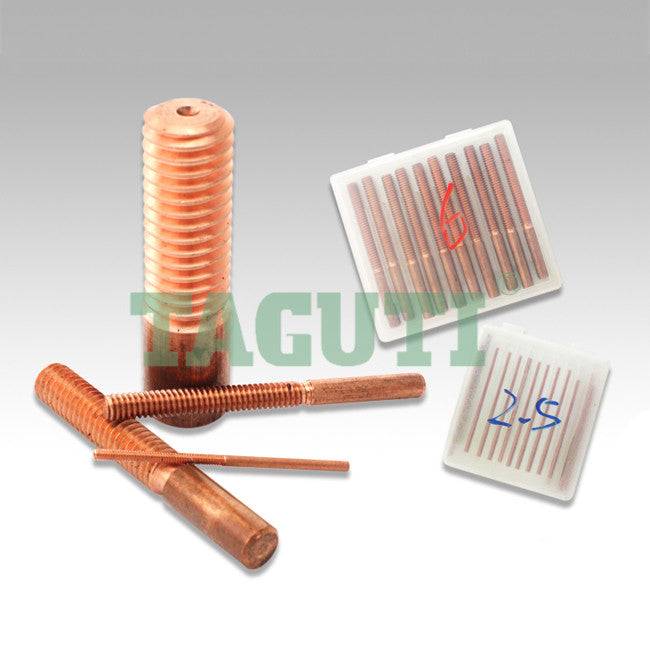

xThread Electrode With Hole

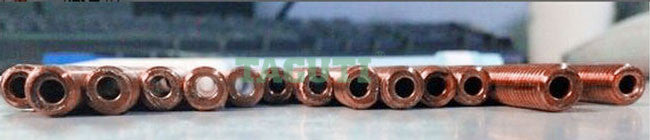

1. Advantages of thread electrode with hole: thread electrode with hole refers to add water outlet holes in the middle of the commonly used thread electrode. Pressurized processing fluids flows between thread electrode and workpiece to discharge slags, and then to increase the productivity and reduce the costs.
2. Materials of thread electrode with hole: high-quality cooper.
3. Features of TAGUTI® threading electrodes with hole: high purity, good electrical and thermal conductivities, strong anti-oxidation, fine corrosion resistance and excellent processability.
4. Machinable mould materials: C45C, SKD11, steel, cemented carbide, copper, aluminum, etc.
Metric Standard of Copper Thread Electrode Chart (mm)
| Item No. | P | D | d | W | T | Inner hole diameter |
| Pitch of the thread | Diameter of Thread shank | Depth of the thread | Whole length | Thread length | ||
| M3 | 0.5 | 3.0 | 2.2 | 55 | 30 | 1.0 |
| M4 | 0.7 | 3.0 | 3.0 | 55 | 35 | 1.5 |
| M5 | 0.8 | 4.0 | 3.9 | 60 | 35 | 2.0 |
| M6 | 1.0 | 5.0 | 4.7 | 60 | 35 | 2.5 |
| M8 | 1.25 | 8.0 | 6.5 | 55 | 35 | 2.2 |
| M10 | 1.5 | 8.0 | 8.0 | 55 | 35 | 2.2 |
| M12 | 1.75 | 10.0 | 10.0 | 55 | 35 | 2.2 |
| M14 | 2.0 | 12.0 | 11.7 | 55 | 35 | 2.5 |
| M16 | 2.0 | 14.0 | 13.7 | 55 | 35 | 2.5 |
| M18 | 2.5 | 16.0 | 15.2 | 55 | 35 | 2.5 |
| M20 | 2.5 | 18.0 | 17.2 | 55 | 35 | 2.5 |
※Special specifications of thread electrode can be customized!
