Description

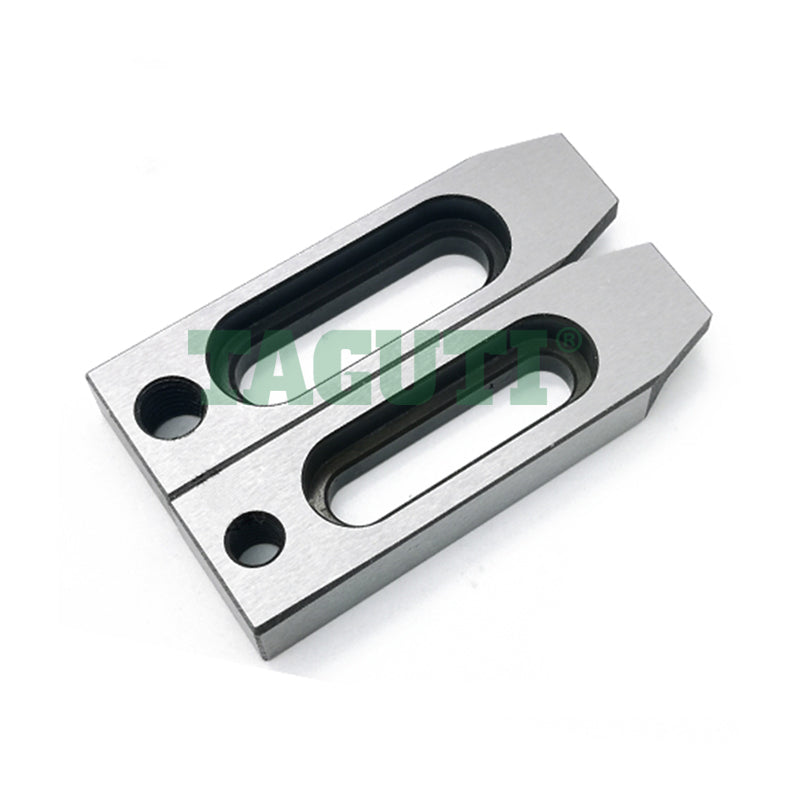

xWire EDM Clamp
Our Wire EDM Clamp is made of high-quality SUS136, which has been vacuum heat treated and finely ground to form. It has the characteristics of strong stability, not easy to deform, and not easy to break. It is very suitable for clamping large thickness workpieces when used with heightened bolts.
Wire EDM Stainless Steel Jig Holder Clamp is suitable for wire cutting machine tools of various manufacturers.
Features
- Suitable for using in WEDM machines;
- Adopting stainless steel with heat treatment, stable and distortion free;
- Based on the type of WEDM machines and workpiece applied, it can make various combinations.

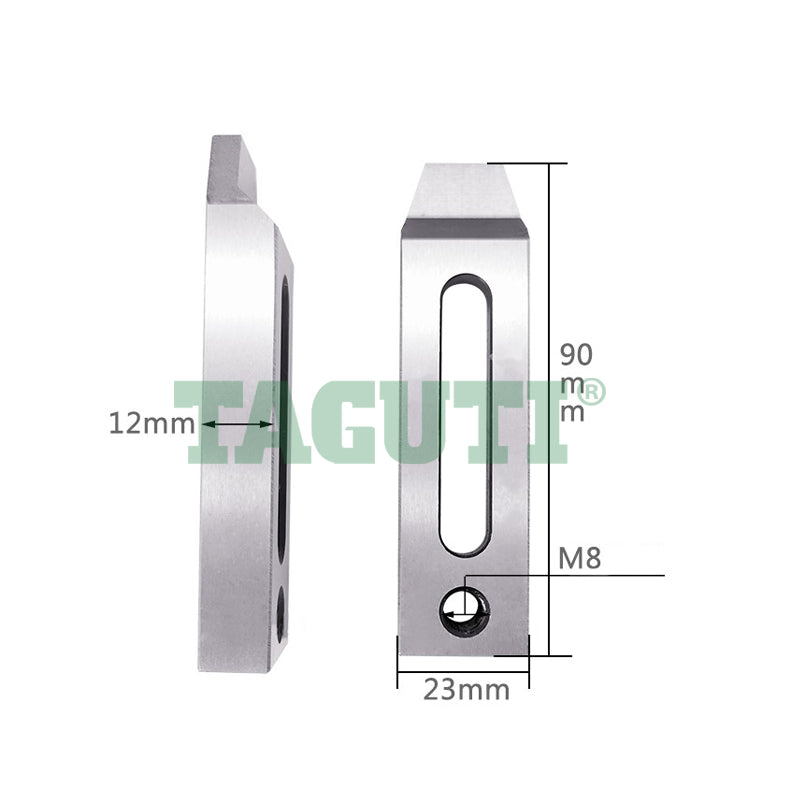

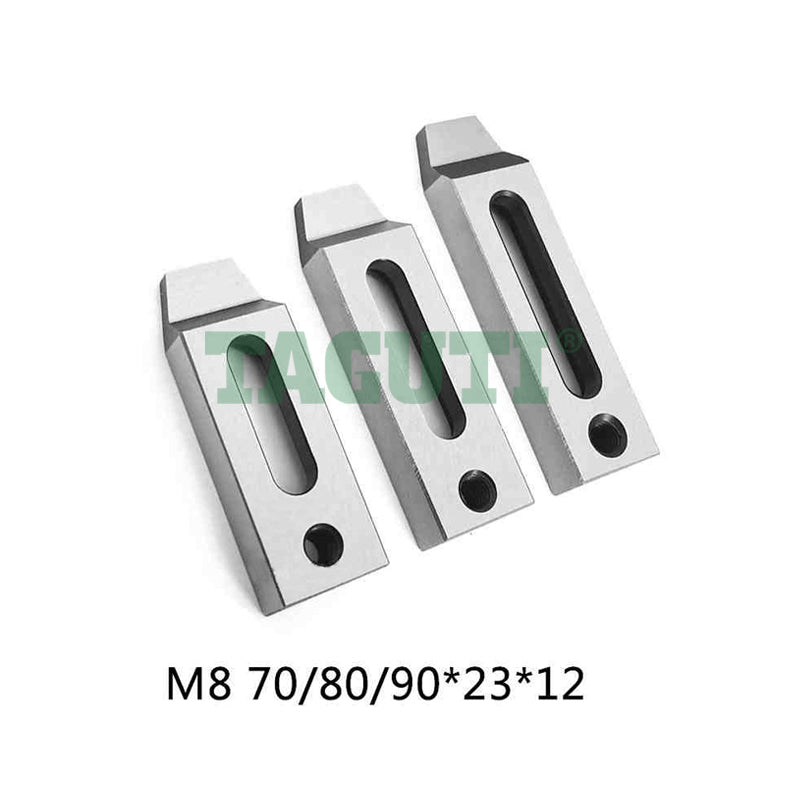

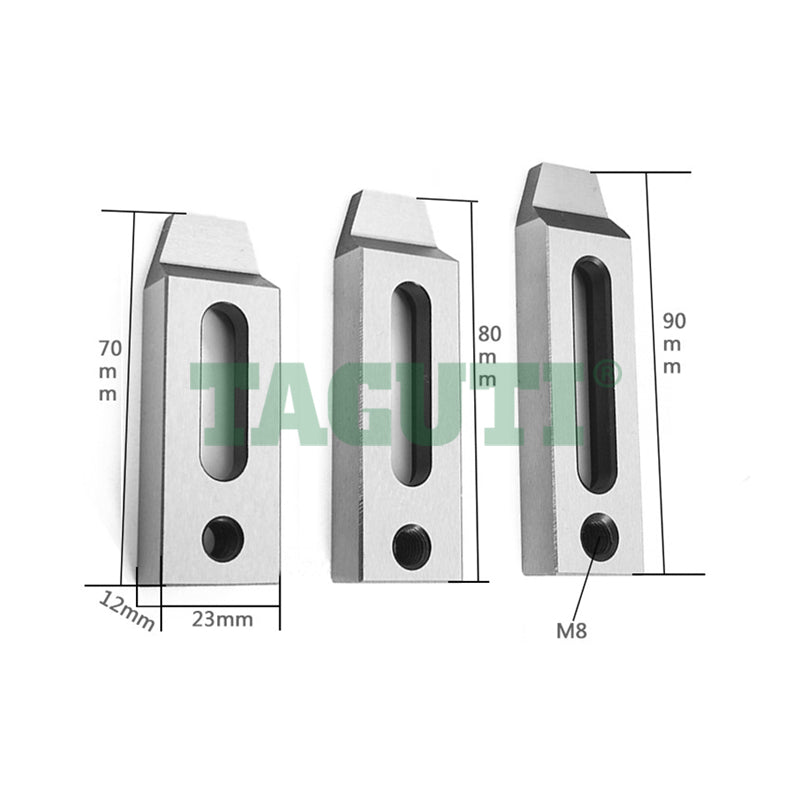

The Technical Parameters of Wire EDM Clamp
| Type | T030-70 | T030-80 | T030-90 |
| Size | 70L*24W*12T | 80L*24W*12T | 90L*24W*12T |
| Material | SUS136 | SUS136 | SUS136 |
| N.W. | 0.1kg | 0.12kg | 0.14kg |
