Wire Cut EDM Heightened Screws

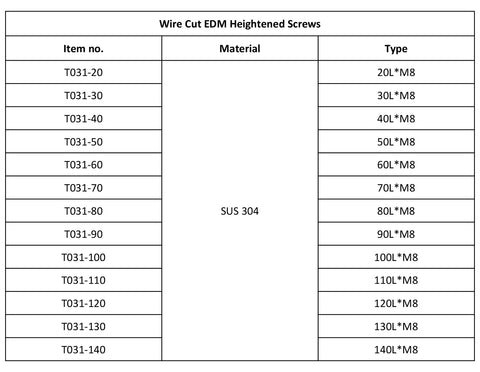

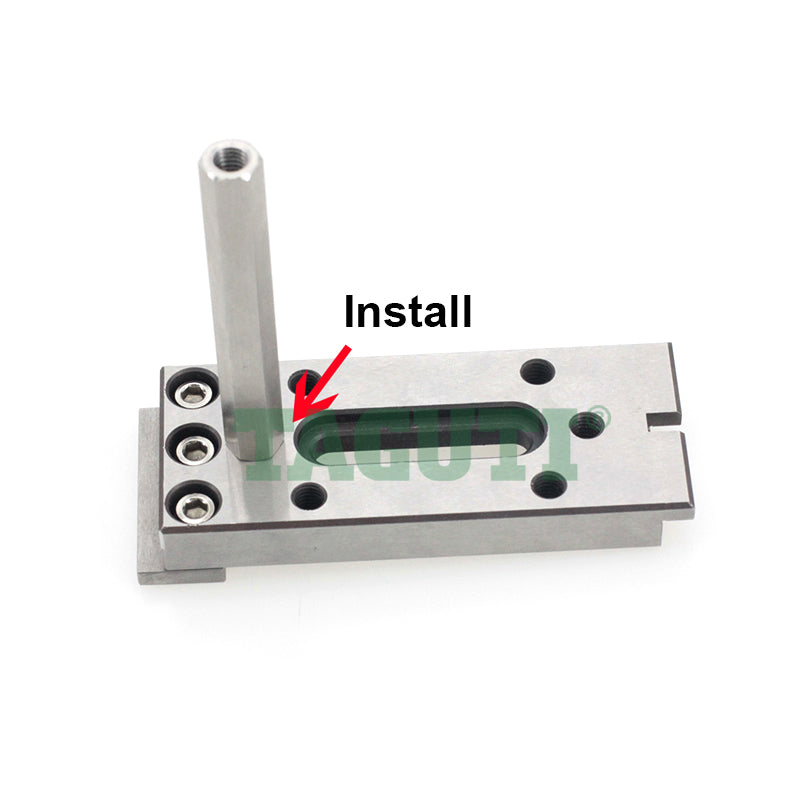

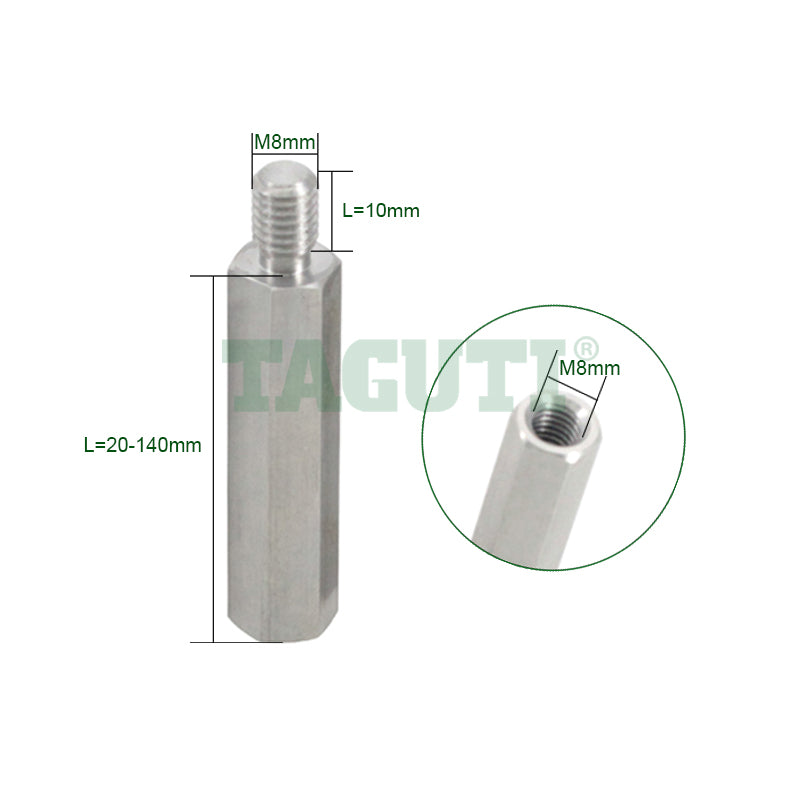

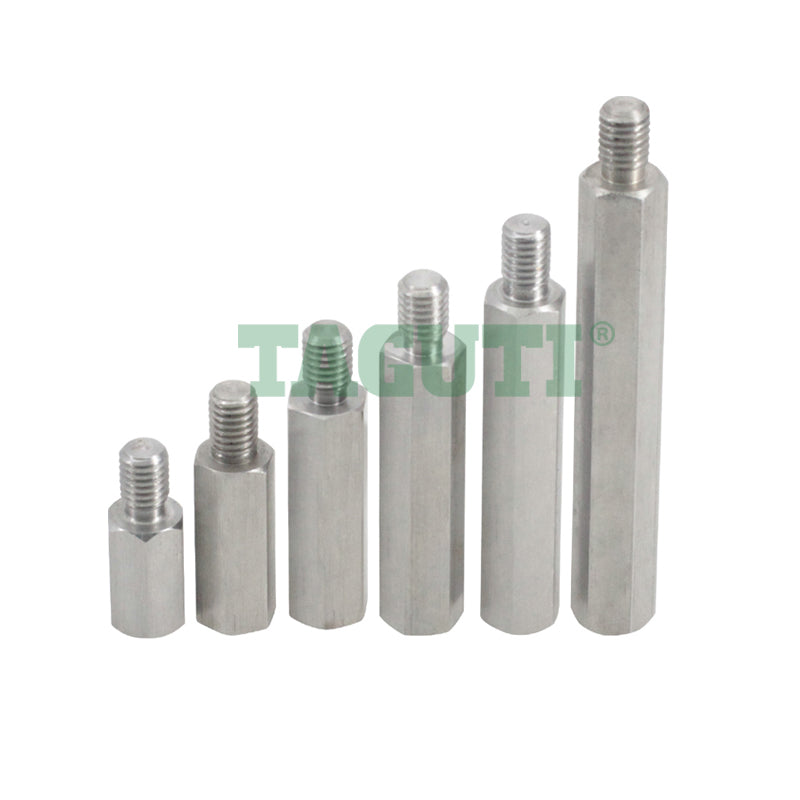

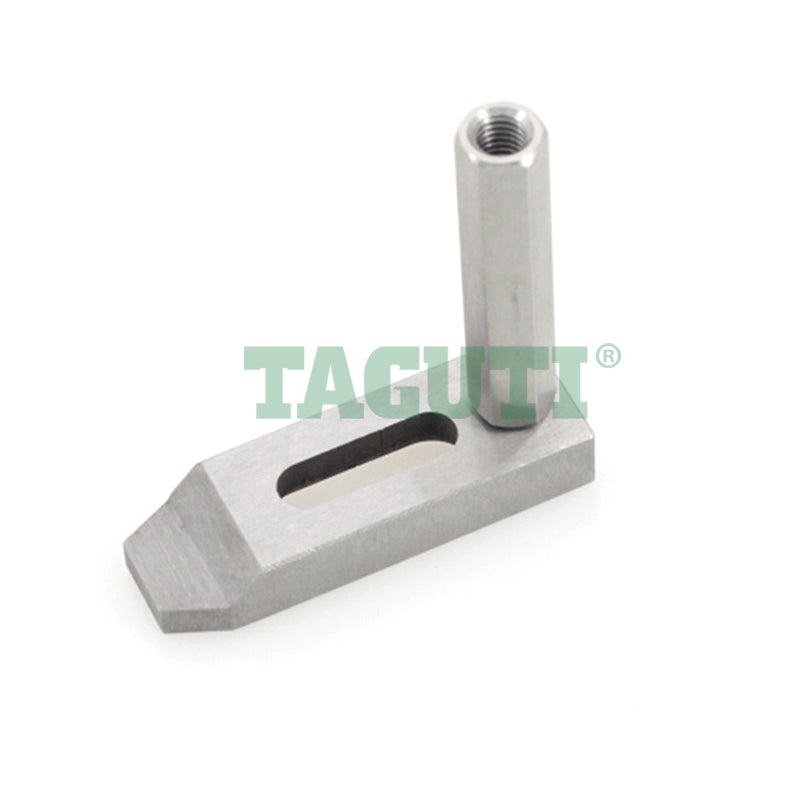

Wire Cut EDM Heightened Screws are made of SUS304 material, with complete specifications, ranging from 20mm to 140mm. They can be used in combination with wire EDM...

Applicable to: TAGUTI EDM Parts Type: Wire Cut EDM Heightened Screws SKU: SET
