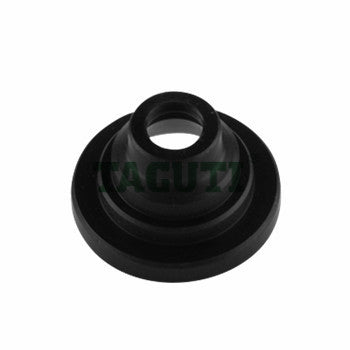

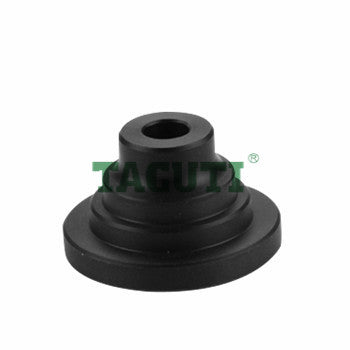

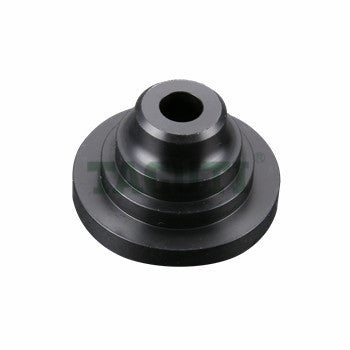

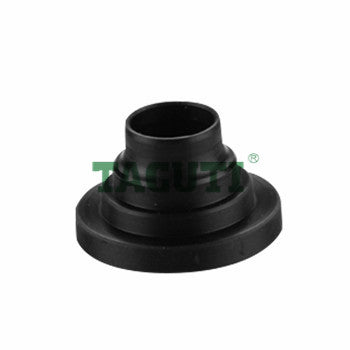

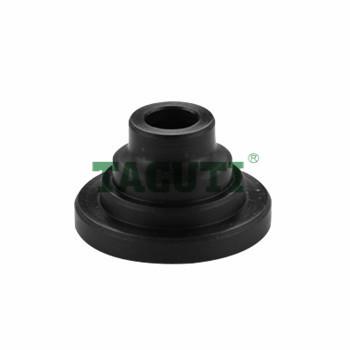

3086386 3086443 0204998 435198A Sodick Nozzle S S209W

3086386,3086443,0204998,435198A, 435198C Water nozzles upper and lower possess the precise internal diameter, vertical water column outlet, high wrapping of brass wire and good cost performance...

Applicable to: Sodick Type: Water nozzle SKU: PC

ID=6.0mm
