Copper electrode Tube For EDM drilling EDM machining

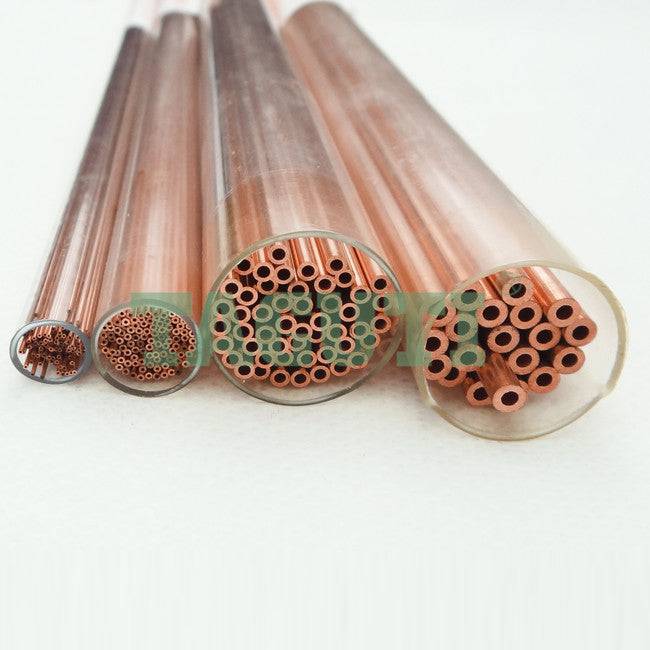

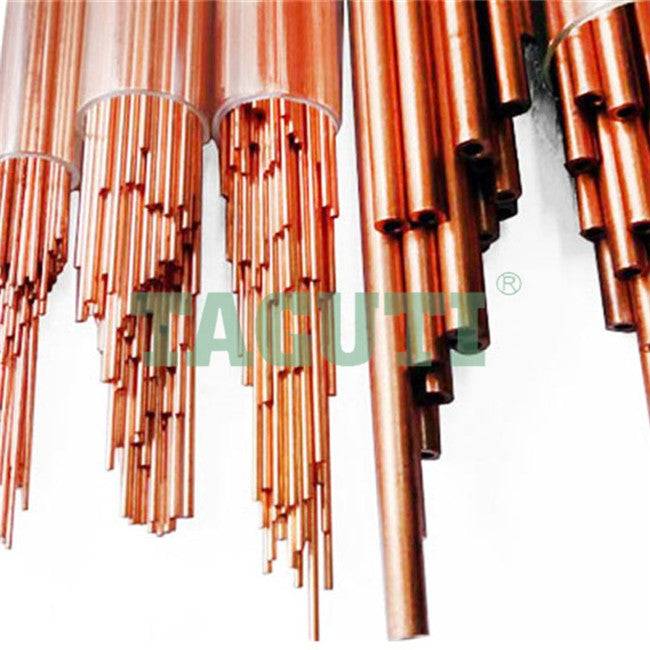

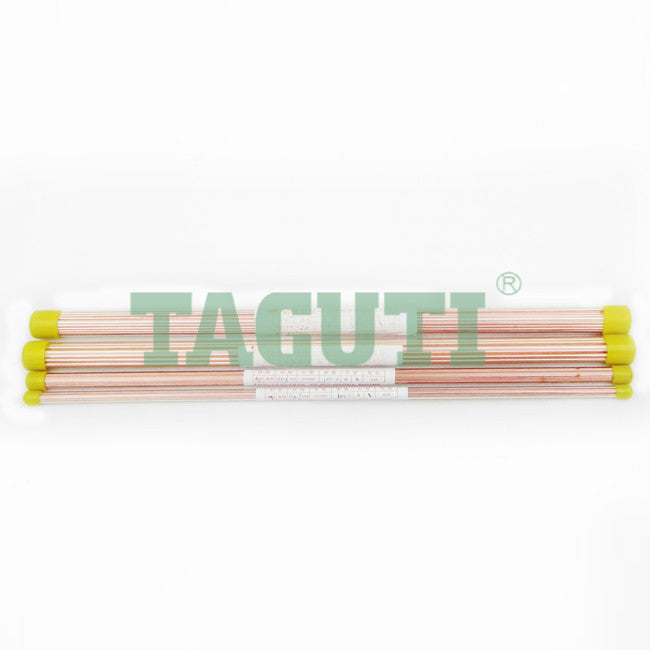

Brass or copper electrode tubes have single and multi holes, selected with good electrolytic copper raw materials with less impurity, low loss, good verticality, smooth water flow and good chip removal without inner hole blocking.
TAGUTI EDM Copper Tube
1. Common Specifications of Copper Electrode Tube:a. Single Hole,
outside diameter: Ø0.15mm, Ø0.20mm, Ø0.25mm; Length: 200mm or 300mm;
outside diameter: Ø0.3 ~ Ø6.0mm (Each size interval 0.1mm); Length: 400mm or 500mm
outside diameter: Ø1.2 ~ Ø6.0mm (Each size interval 0.1mm); Length: 300mm or 400mm.
2. Application range:
Copper tube electrode is mainly used in small hole EDM drill for cemented carbide (KG5, W88%, CO12%) materials.
3. The function of copper tube electrode:
TAGUTI® EDM copper tube is widely used in the many fields such as auxiliary hole in WEDM, capillary hole of spinneret plates, group drilling holes of sieve plate, fluid filling hole of electrical plate, engine cooling holes, spray holes of oil nozzle and other filtration pores in papermaking, chemical fiber and food industries. Whether workpiece surface is curved or beveled, the required holes can be smoothly processed out with high speed. The ratio of depth to diameter of processed hole is more than 200 : 1.
4. Product Introduction:
According to materials, copper tube electrode can be divided into two types: brass tube and copper tube. Brass tube and copper tube are respectively crafted from high-quality brass and copper as the raw materials through strictly technical requirements and reasonable processing techniques.
According to hole type, copper tube electrode can be divided in to single hole electrode and multi hole electrode.
Single hole electrode tube electrode with higher cost performance remains the choice for majority of users.
Multi hole electrode tube electrode has the features of good verticality, fast slagging and effective discharge to increase the machining speed.
TAGUTI® electrode tubes benefit from excellent verticality, super surface finish, strong corrosion resistance, stable performance, blocking resistance and low consumption.
※Special size and length can be customized should you have the demand!
