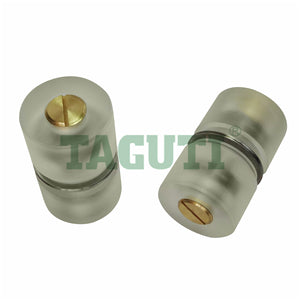

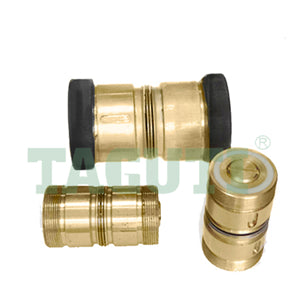

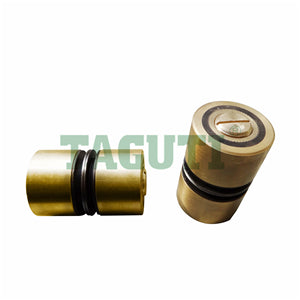

Guide wheel pulley assembly has the features of guide wheel brass seat, specialized bearing for wire EDM cutting, precious assembly, good concentricity, small gap, stable wire transport, wear resistance, long service life.
The price of common specifications is as above. Please consult our customer service for other specifications
The Selection Of Guide Pulley Assembly In Wire Cut EDM
1. Guide Wheel Seat: □ Brass □ Organic Glass
2. Guide Wheel Material: □ Metal □ Ceramic □ Sapphire
3. Shape of Guide Pulley Assembly: □ Biaxial □ Uniaxial
4. Dimension: Outer Diameter: Ø mm Length mm

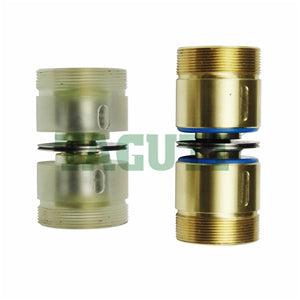

Commonly Used Biaxial Guide Pulley Assembly
TAGUTI Order No. |
Photo | Outer Diameter | Length | Material |
DZJ-3053 | ![]() |
Ø 30mm | 53mm |
Brass seat and metal guide wheel |
DZJ-3260 | Ø 32mm | 60mm |
Brass seat and metal guide wheel |
|
DZJ-3267 | 67mm | |||
DZJ-3270 | 70mm | |||
DZJ-4060 | ![]() |
Ø 40mm | 60mm |
Brass seat and metal guide wheel |
DZJ-4064 | 64mm | |||
DZJ-4260 | Ø 42mm | 60mm |
Brass seat and metal guide wheel |
|
DZJ-4264 | 64mm | |||
DZJ-4267 | 67mm |

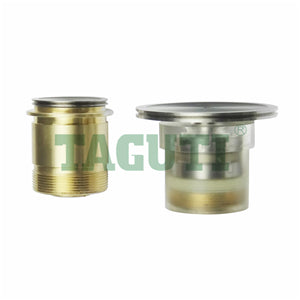

Commonly Used Uniaxial Guide Pulley Assembly
TAGUTI Order No. |
Photo | Guide Wheel OD |
Guide Wheel Seat OD |
Length | Material |
DZJ-303043 |
|
Ø 30mm | Ø 30mm | 43mm | Organic glass guide roller and metal guide wheel |
DZJ-322035 | Ø 32mm | Ø 20mm | 35mm | Brass seat and metal guide wheel | |
DZJ-322037 | Ø 20mm | 37mm | |||
DZJ-322235 | Ø 22mm | 35mm | |||
DZJ-323231 | Ø 32mm | 31mm | |||
DZJ-323231 (W) |
Ø 32mm | 31mm | |||
DZJ-322068 | Ø 20mm | 68mm | Organic glass guide roller and metal guide wheel | ||
DZJ-362070 | Ø 36mm | Ø 20mm | 70mm | ||
DZJ-402650 | Ø 40mm | Ø 26mm | 50mm | ||
DZJ-403050 | Ø 30mm | 50mm | |||
DZJ-403236 | Ø 32mm | 36mm | Brass seat and metal guide wheel | ||
DZJ-503034 | Ø 50mm | Ø 30mm | 34mm | Organic glass guide roller and metal guide wheel |
