Description

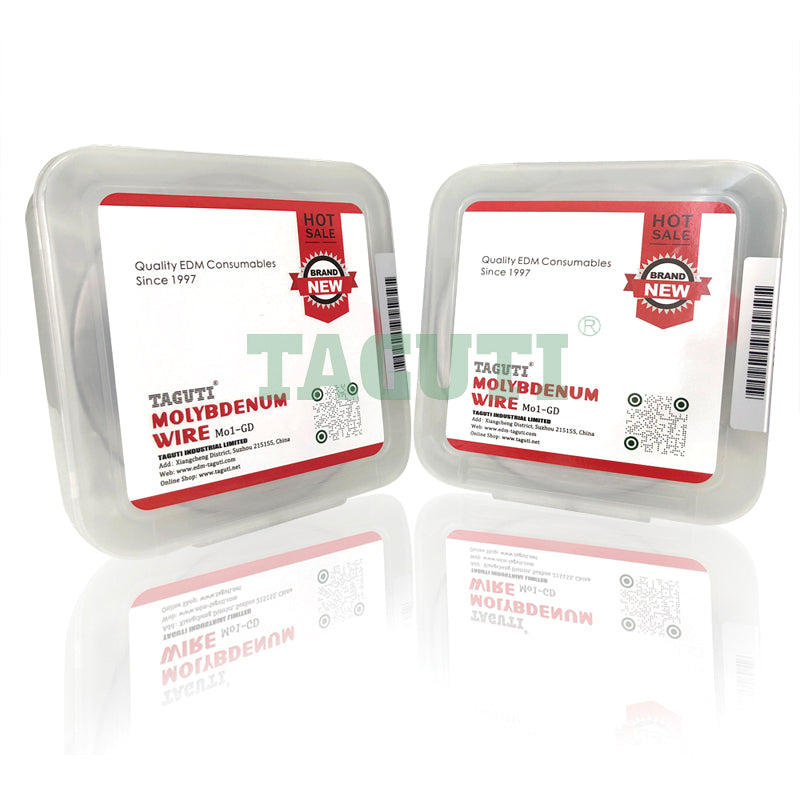

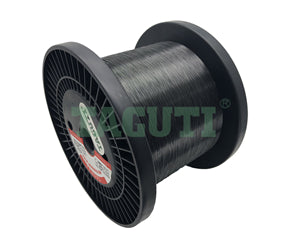

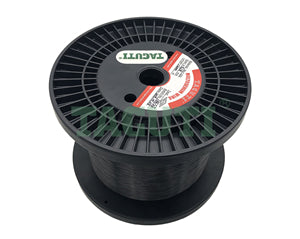

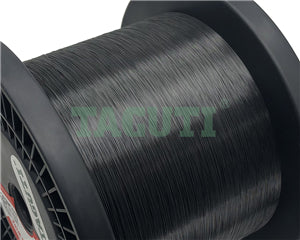

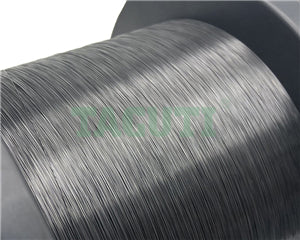

xMolybdenum Wire
Molybdenum wires for wire cut EDM processing features with Mo content≧99.97%, tensile strength≧2300N/mm2, accurate wire diameter tolerance, low elongation and low loss, suitable for processing large thickness workpieces.
Advantage of TAGUTI Molybdenum Wire
1. Strict material selection-selection of pure molybdenum materialsand excellent electrical erosion resistance;
2. High tensile strength-not easily fracture of wires;
3. Low ductility-easily maintain stable tension;
4. No protective covering on the surface, manufacturing stability and high efficient;
5. Correct wire diameter to ensure the processing precision
6. Low wastage and long service life;
7. High curl rate, straight wire, easily thread wire;
8. Vacuum package, more than one year storage life.
Technical Parameters TAGUTI of Molybdenum Wire
Diameter: Ø 0.18mm
| Test Items | China National Standard | Test Result | Remark |
| Appearance | No Split | No | |
| No Crack | No | ||
| No Rag | No | ||
| Mo content | ≥99.95% | ≥99.97% | |
| Diameter | Φ0.177-Φ0.183mm | Φ0.179mm | |
| Tensile Strength | ≥3.9kg | ≥5.6kg | |
| Ductility | ≤5% | ≤3.4% | |
| Linearity | H>400mm | >400mm | Draping Method |
| Error in Length | ±3% | ±2% |
For 0.18mm*2000m
