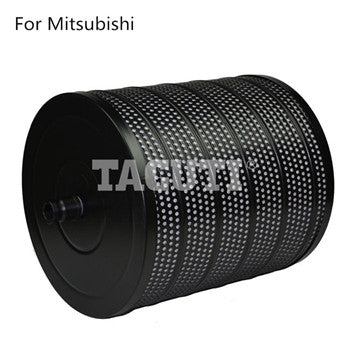

Sinker EDM Filter Mitsubishi S642D854P06 YT-3030

04.01.628, S642D854P06, A244 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$25.50

04.01.628, S642D854P06, A244 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-3030

◆ Reference Number: 04.01.628, S642D854P06, A244

◆ Dimensions: Φ300*300mm

◆ Connection system: Φ32mm central nipple

◆ Flow direction: Inside to outside

◆ Filter fineness: 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Macro pleats

◆ Net Weight: 4.70kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: Mitsubishi DWCXXX-SA, DWCXXX-SB, DWCXXX-SZ, DWCXXX-Z, PA20

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
