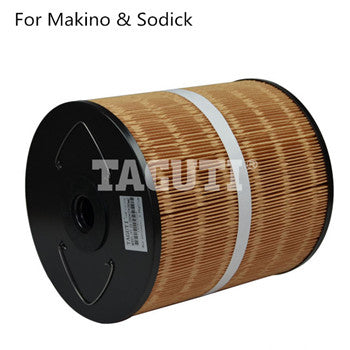

Wire Cut EDM Filter Sodick Makino H26644/20 DW-23N YT-23

 H26644/20; H26644/21,DW-23N,MF-0900 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$22.50

 H26644/20; H26644/21,DW-23N,MF-0900 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-23

◆ Reference Number: H26644/20; H26644/21,DW-23N,MF-0900

◆ Dimensions: Φ260*Φ46*280mm

◆ Connection system: Without connection nipple

◆ Flow direction: outside  to Inside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 3.30kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Makino: Makino EC-3025, EC-3040, EC-3141, EC-7050, EC-3141S, EC-108, EA-3040EDNC Series,EH30, EM30, EM330, ED330, EDGE1, EDGE2, ED22,EN-330

◆ Applicable Machine For Sodick: Sodick A350, A350S, A350SSW, A350W, A500, A500W, AP200, AP300, AP330, AP450, AW330, AW453, EPOC1100, EPOC300, EPOC500, EPOC600, EPOC800
