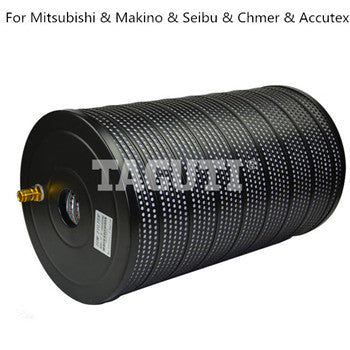

Wire Cut EDM Filter H311033 H311680 S642D854P06 YT-38

H311033/21,H311680 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$33.50

H311033/21,H311680 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-38

◆ Reference Number: 04.01.400, 04.01.405, 04.01.702, 04.01.704,H311033/2, H311033/20, H311033/21,H311680, H311680/1,S642D854P06, A244, C409, Q4008,DW-38

 ◆ Dimensions: Φ300*Φ59*500mm

◆ Connection system: Φ20mm side nipple

◆ Flow direction: Dual flow

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Double bellow

◆ Net Weight: 6.80kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: Mitsubishi DWCXXX-SA, DWCXXX-SB, DWCXXX-SZ, DWCXXX-Z, PA19

◆ Applicable Machine For Makino: Makino EC32, EC64, ECQ53, EE3, EE6, EE6L, EE8, EH3, EH6, EQ5, EQF5, EQH5, MU43, MUQ32

◆ Applicable Machine For Seibu: Seibu A Series EW(A5,A5S,A7S), EW-C3,EWP-B3S / K2 SeriesEW-300K2,EW-450K2, EW-600K2, EW-700K2,EW-1000K2

◆ Applicable Machine For Chmer & Accutex: Chmer series,ACCutex series

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
