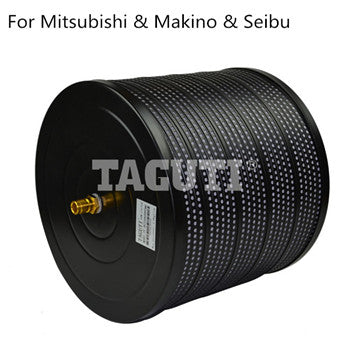

Wire EDM Filter H341070 H341290 H341380 Z474L0010010 S684D899P88 YT-36Z-20

H341070,H341290 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$32.50

H341070,H341290 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-36Z-20

◆ Reference Number: 04.01.475, 04.01.481,04.01.600, 04.01.706, 04.01.714,  04.01.720,04.01.728, 04.04.005,H34 1070/2, H34 1070/8, H34 1290/1, H 34 1380/1, H 34 1380/20 Kit,H 34 1390, H 34 1390/1, H 34 1390/2, H 34 1390/3, H 34 1490/14 Kit 951100017,951100062, 951100066,Z474L1010600, Z476L0010010, Z476A101050, Z476L0010020,A99L-0107-0007#6-A,S642D854P13 , S684D899P88,A162,OMF-340FK-125,104439

◆ Dimensions: Φ340*300mm

◆ Connection system: Φ20mm central nipple

◆ Flow direction: Inside to outside

Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Macro pleats

◆ Net Weight: 6.70kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: Mitsubishi BA24, BA8, CX10, CX20, FA10, FA10-P, FA10-V, FA10-VS, FA20, FA20-P, FA20-V, FA20-VS, FA30-P, FA30-V, FX10, FX10-K, FX20, FX20-K, FX30, FX30-K, MV1200R, MV1200S, MV2400R, MV2400S, PA20, PX05, QA10, QA20, RA9, RA90,

◆ Applicable Machine For Makino: Makino EU64, SP43, SP64, U3, U32, U32i, U32j, U53, U53i, U53j, U53K, U53Tj, U6, U86, UPH-1, UPH-2

◆ Applicable Machine For Seibu: Seibu EW-A5, EW-A5S, EW-C3
