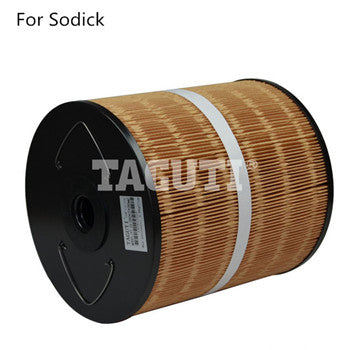

EDM Filter Sodick H26644/1 Z474L1010300 HF-23 MF-2628

Z474L1010300, 2060553 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$22.50

Z474L1010300, 2060553 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-22

◆ Reference Number: 04.01.060,04.01.065, H26644/1, H26644/20, Z474L1010300, 2060553, HF-23, DW-22, MF-2628

◆ Dimensions: Φ260*Φ37*280mm

◆ Connection system: Without connection nipple

◆ Flow direction: outside  to Inside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 3.30kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Sodick: Sodick A350, A350S, A350SSW, A350W, A500, A500W, AP200, AP300, AP330, AP450, AW330, AW453, EPOC1100, EPOC300, EPOC500, EPOC600, EPOC800

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
