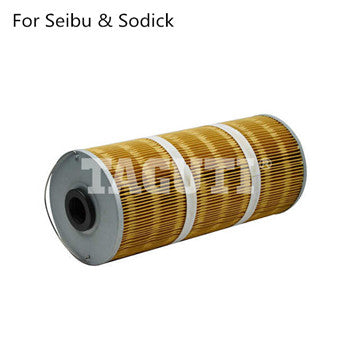

HF-02 Wire Cut EDM Filter Seibu Sodick DW-02 YT-02

HF-02, DW-02 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$6.95

HF-02, DW-02 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-02

◆ Reference Number: HF-02, DW-02

◆ Dimensions: Φ150*Φ33*350mm

◆ Connection system: Without connection nipple

◆ Flow direction: Outside to inside

◆ Filter fineness: 5 - 7µm or 10 - 15µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 0.90kg

◆ Recommended Max Pressure: 149kpa (1.5kgf/cm²)

◆ Instant Limit Working Pressure: 198kpa (2.0kgf/cm²)

◆ Applicable Machine For Sodick: Sodick EPOC Series, AP Series

◆ Applicable Machine For Seibu: EW-25, EW-30N, EW-35, EW-250, EW-400, EW-600,EW-300F, EW-400F, EW-600F, EW-1000F,EW-300K1, EW-450K1, EW-600K1, EW-700K1, EW-1000K1,EW-450K1FA, EW-600K1FA, EW-1000K1FA,EWP-300A, EWP-300B
