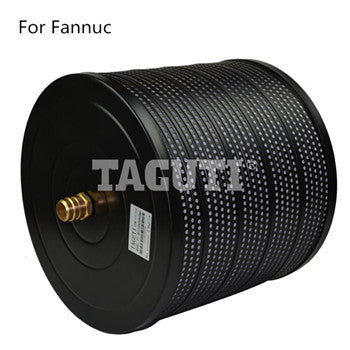

A99L-0107-0007 EDM Filter Fanuc H341390 Z476L0010020 S642D854P13

A99L-0107-0007/6-A Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$32.50

A99L-0107-0007/6-A Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-36Z-31

◆ Reference;Number:04.01.652,04.01.720,04.01.728,04.04.005,S642D854P13,H341390,H341380,951100062,951100066,Z476L0010020;,A99L-0107-0007/6-A,A99L-0107-0007#6-A

◆ Dimensions: Φ340*300mm

◆ Connection system: Φ31mm central nipple

◆ Flow direction: Inside to outside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Macro pleats

◆ Net Weight: 6.70kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Fanuc: Fanuc α-0iB with AWF, α-0iB without AWF, α-0iC with AWF, α-0iC without AWF, α-0iD with AWF, α-0iD without AWF, α-0iE with AWF, α-1iB with AWF, α-1iB without AWF, α-1iC with AWF, α-1iC without AWF, α-1iD P, α-1iD with AWF, α-1iD without AWF, α-1iE with AWF, α-C400iA with AWF, α-C400iA without AWF, α-C600iA with AWF, α-C600iA without AWF
