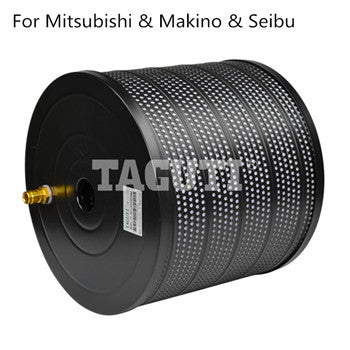

Wire EDM Filter S642D854P13 Z476A1010500 04.01.430 04.01.616 YT-36P-20

S642D854P13,Z476A1010500 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$32.50

S642D854P13,Z476A1010500 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-36P-20

◆ Reference Number: A162,DW-36,04.01.430,04.01.435,04.01.616,S642D854P13,Z476A1010500

◆ Dimensions: Φ340*Φ46*300mm

◆ Connection system: Φ20mm side nipple

◆ Flow direction: Dual flow

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Double bellow

◆ Net Weight: 6.50kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: CX20, FX10, FX10-K, FX20, FX20-K, FX30, FX29-K

◆ Applicable Machine For Makino: Makino DUO43, DUO64, EC32, EC64, ECQ53, EU53, EU64, SP43, SP64, U3, U32, U32i, U32j, U32K, U53, U53i, U53j, U53K, U53Tj, U6, U86, UP32j, UP53j, UPH-1, UPH-2, UPJ-2, UPN-01, UPV-3, UPV-5, W32FB

◆ Applicable Machine For Seibu: Seibu A Series EW(A5,A5S,A7S), EW-C3, EWP-B3S / K2 Series,EW-300K2, EW-450K2, EW-600K2, EW-700K2, EW-1000K2, N-750S, N500S
