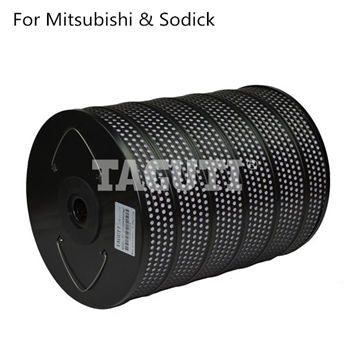

MF-2400 Wire Cut EDM Filter Sodick Mitsubishi 2060135 2060835

MF-2400 04.01.420,662060135 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$25.50

MF-2400 04.01.420,662060135 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-17

◆ Reference Number: MF-2400 04.01.420,662060135,2060135,2060835,DW-17

◆ Dimensions: Φ260*Φ29*340mm

◆ Connection system: Without connection nipple

◆ Flow direction: Inside to outside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 3.95kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: Mitsubishi N Series DWC(70、90、90P,110、200)N,DK,KMSeries,DP431

◆ Applicable Machine For Sodick: SodickA10,A10L,A15,A15L,A30,A35,A50,A65,A85,A85L,AD30L,AD3L,AG35L,AG40L,AG55L,AG60L,AG75L,AG80L,AH10,AH65,AH85,AQ15L ,AQ25L,AQ35L,AQ55L,AQ75L,K1BL,K1C,K1C-AH,K1C-N,K1C-S,K2C-N,K2P-N,K3C-N,K3H-N,K3P-N,PGM30,PGM35,PGM50 ,PGM65
