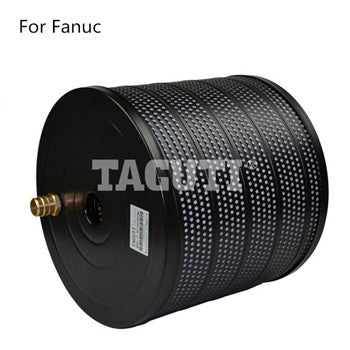

Wire Cut EDM Filter Fanuc DW-36 YT-36P-31

DW-36 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$32.50

DW-36 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-36P-31

◆ Reference Number: DW-36

◆ Dimensions: Φ340*Φ46*300mm

◆ Connection system: Φ31mm side nipple

◆ Flow direction: Dual flow

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Double bellow

◆ Net Weight: 6.50kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Fanuc: Fanuc Model (O, P, Q, R, S, T, V),Tape Cut (W0, W1, W2, W3, W4),Cut Mate, Cut α-OA,ROBOCUT α-0C, α-1C

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
