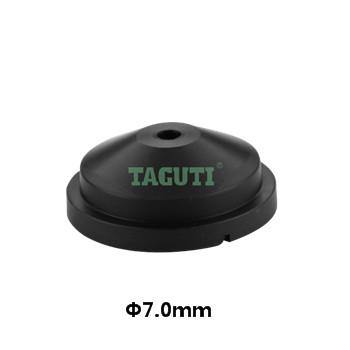

X085C257H02 X085C155H02 M220 Mitsubishi Upper Nozzle Composite

X085C257H02,DFF7300,288624,X085C155H02,DEG42A,DEG4200,252207 Water nozzles upper and lower possess the precise internal diameter, vertical water column outlet, high wrapping of brass wire and good cost performance in...

Applicable to: Mitsubishi Type: Water nozzle SKU: PC

ID=Φ7.0mm
