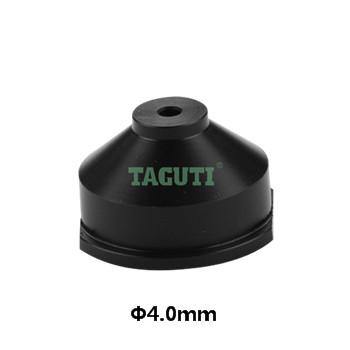

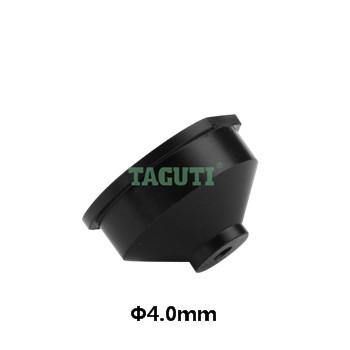

X085C131H11 X085C131H01 Mitsubishi Lower Nozzle Composite

X085C131H11, DFC6900, 265079, X085C131H01, DEG4400, 252182 Water nozzles upper and lower possess the precise internal diameter, vertical water column outlet, high wrapping of brass wire...

Applicable to: Mitsubishi Type: Water nozzle SKU: PC

ID=Φ4.0mm
