Products

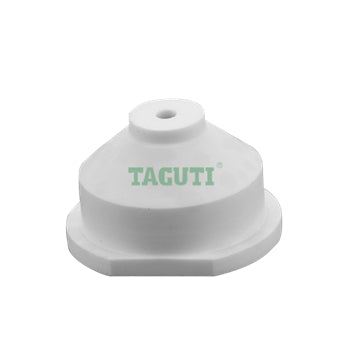

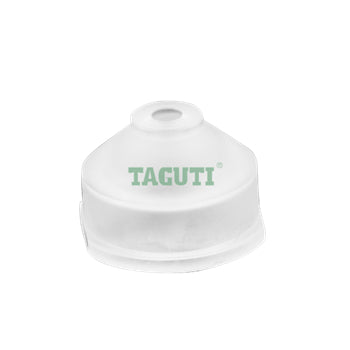

X054D881H03 X054D881H01 X054D881H04 Mitsubishi EDM Nozzle

X054D881H03, S606, DA77400, DQ303A, X054D881H01, DR10700, 36879 Water nozzles upper and lower possess the precise internal diameter, vertical water column outlet, high wrapping of brass...

Applicable to: Mitsubishi Type: Water nozzle SKU: PC

ID=Φ4.0mm
