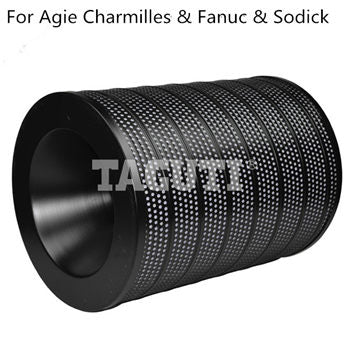

Wire EDM Filter 135000253 H341158 H341790 DHF-25A YT-25N

135000253 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$33.50

135000253 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-25N

◆ Reference Number: 04.01.210, 04.01.211, 04.01.215, 04.01.486, 04.01.487, 04.01.712, 04.04.001,135000253,H34 1158/2, H34 1158/3, H34 1158/5, H34 1158/8, H34 1158/20, H34 1790, H341790/2, H341790/3,951100012,2060136, 2063284, 2060554, 2064736,DHF-25A,DW-25N

◆ Dimensions: Φ340*Φ46*450mm

◆ Connection system: Without connection nipple

◆ Flow direction: Inside to outside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 6.30kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Agie Charmilles: AGIE CUT (100D, 150, 200D, 250, 300D) Evolution(2, 3), DEM(215, 250, 315, 700),Charmilles FI 230 F, FI 240, FI 240 CC, FI 240 CCS, FI 390, FI 440, FI 440 CC, FI 440 CCS, FI 640 CC, FI 640 CCS, FI 691,

◆ Applicable Machine For Fanuc: Fanuc O, P, Q, R, S, T, V, W0, W1 with AWF, W1 without AWF, W2 with AWF, W2 without AWF, W3 with AWF, W3 without AWF, W4 with AWF, W4 without AWF, α-0A with AWF, α-0A without AWF, α-0B with AWF, α-0B without AWF, α-0C with AWF, α-0C without AWF, α-0iA with AWF, α-1A with AWF, α-1A without AWF, α-1B with AWF, α-1B without AWF, α-1C with AWF, α-1C without AWF, α-1iA with AWF

◆ Applicable Machine For Sodick: Sodick A300, A300W, A320, A350, A350W, A500, A500W, A530D, A600, A600W, A750, A750W, AQ325L, AQ327L, AQ535L, AQ550L, AQ600, AQ750L, AQ900L, BF250, BF275, BF280, BF280L
