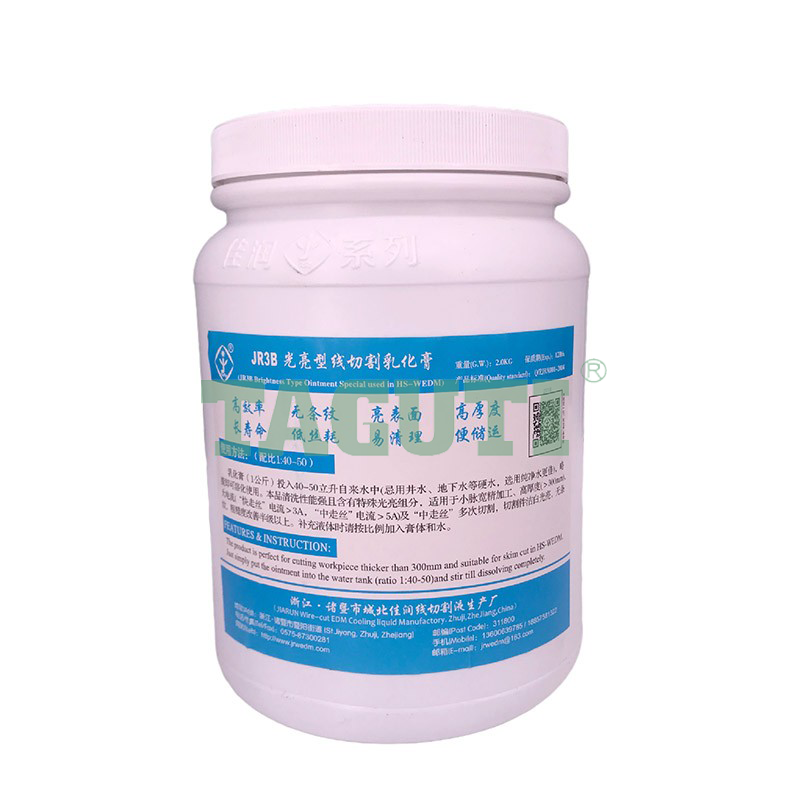

JR-3B Ointment Gel for HS-WEDM (Brightness Type)

JR-3B Ointment Gel

JR-3B WEDM concentrated ointment gel (Brightness Type) or JR-3B EDM gel has high concentration, environmental friendly character, fast processing speed, good finish and good chip removal, suitable for processing large thickness workpieces.

Product Specification

• Concentration Solution：

  1. Put the ointment into running water with a ratio 1:40-50 and stir until mix the ointment into water thoroughly.

  2. Avoid hard water such as well water or ground water.

• Ingredients: Green product for the environment
• Using range:

It is used for cooling of wire electric discharge cutting of various metal materials (HS-WEDM) and also suitable for cooling of metal cutting.

Features

The product is improved based on JR-3A gel, which inherits all the advantages of JR-3A. Besides, JR-3B ointment further improves the stability of large thickness cutting and upgrade the stability of small parameter finishing used for one-time and multiple cutting with micro-energy:

• Highproportion, fast dissolution and easy to use;
• Uniform and whitefinish surface without commutation stripes after the workpiece is cleaned with kerosene;
• JR-3B gelshows fine cutting stability under high-energy processing conditions (average processing current>5A), cutting efficiency increased by 30%, the surface quality improved by half grade, the electrode wire loss reduced by 50%, and the service life of molybdenum wire greatly extended compared with the traditional emulsified oil;
• The workpiece is easy to take off and clean and the workbench surfaceis also clean;
• Suitable for cutting within 500mm thickness die steel.

Specially suitable for multiple-cut of WEDM-HS.

• Expire Date：12 months
• Package：2KG Special Plastic Bottle. 18KG / BOX, (2*9 bottles)
• Attention：

  1. When replenishing, please add JR-3B and water in proportion;

  2. Please use themagnet to suck the workpiece after cutting, so as not to drop and break the molybdenum wire;

  3. When cutting large thickness, properly slow down the variable frequency tracking speed, adjusting from zero to stable cutting, and the ammeter will basically no longer shake.
