6EC100B404 15EC100F411 N416 Makino Wire EDM Clutch Roller

 6EC100B404,15EC100F411 Pinch or urethane roller and pulley have the features of high quality materials, precious grinding, good concentricity, small beating, stable wire transport, high hardness...
Applicable to: Makino Type: Roller gear, shaft, belt SKU: PC
Size

$82.00

 6EC100B404,15EC100F411 Pinch or urethane roller and pulley have the features of high quality materials, precious grinding, good concentricity, small beating, stable wire transport, high hardness and long working life for low speed wire cut EDM machines.

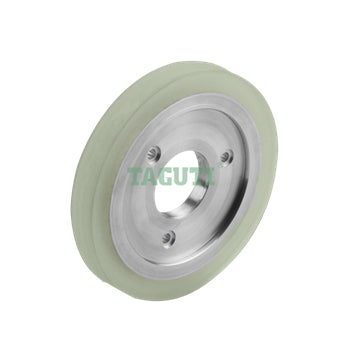

◆ Commodity: Clutch roller

◆ TAGUTI number: N416

◆ OEM numbers: OD106*ID30*14mm 6EC100B404 (V Groove)

                             OD103.5*ID30*14mm 15EC100F411 (U Groove)

◆ Packing quantity: 1 pc(s)

◆ Machine type: Makino DUO43, DUO64, U1310, U3, U3 H.E.A.T, U32, U32i, U32j, U32K, U53, U53i, U53j, U53K, U53Tj, U6, U6 H.E.A.T, U86, UP32j, UP53j, UPV-3, UPV-5, W32FB, W53FB

◆ Application: Wire-cut EDM

◆ Category: Rollers
