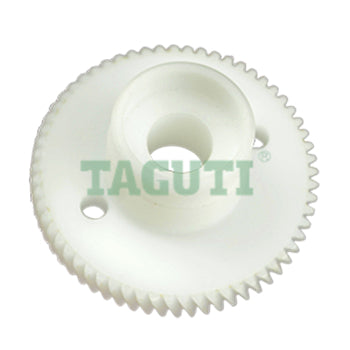

590202052 202.052 Agie Challenge Wire EDM Geared Wheel

◆ Commodity: Geared wheel ◆ TAGUTI number: C2052 ◆ OEM numbers: 590202052 202.052 ◆ Packing quantity: 1 pc(s) ◆ Machine type: Agie Challenge 2, Challenge...

Applicable to: Agie Charmilles Type: Roller gear, shaft, belt SKU: PC
