3080374 0200428 3080375 0200429 Sodick Wire EDM AWT Pipe S602

Applicable to: Sodick Type: View More SKU: PC

L=285mm 2.0-0.7mm

L=285mm 2.0-1.0mm

$12.80

Description

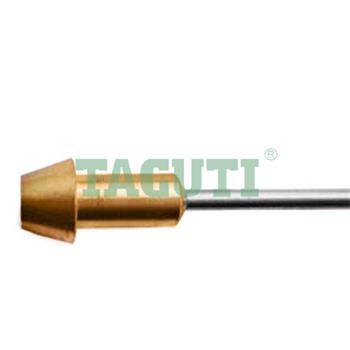

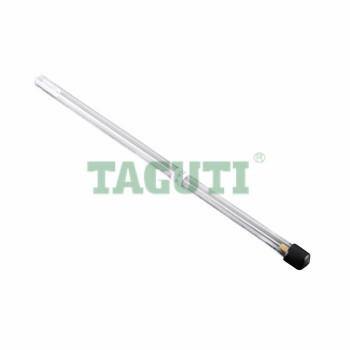

◆ Commodity: AWT pipe

◆ TAGUTI number: S602-2, S602-3

◆ OEM numbers: L=285mm Ø2.0-Ø0.7mm 3080374 0200428, L=285mm Ø2.0-Ø1.0mm 3080375 0200429

◆ Packing quantity: 1 pc(s)

◆ Machine type: Sodick A1000W, A300W, A325, A350, A350S, A350SSW, A350W, A500, A500W, A600, A600W, A750, A750H, A750W, A750WH, AP200, AP200L, AP300, AP330, AP450, AP450L, AP550, AQ325L, AQ535L, AQ550L, AQ600, AQ750L, AW330, AW453, BF275, BF280L, EPOC1100, EPOC300, EPOC500, EPOC600, EPOC800, G3A, G5A, JL35, JL55, JL65, JL85, PGW200, PGW3

◆ Application: Wire-cut EDM

◆ Category: Miscellaneous

Product Tag

Tags: 0200428, 0200429, 3080374, 3080375, sodick, view-more, wire-cut-edm
