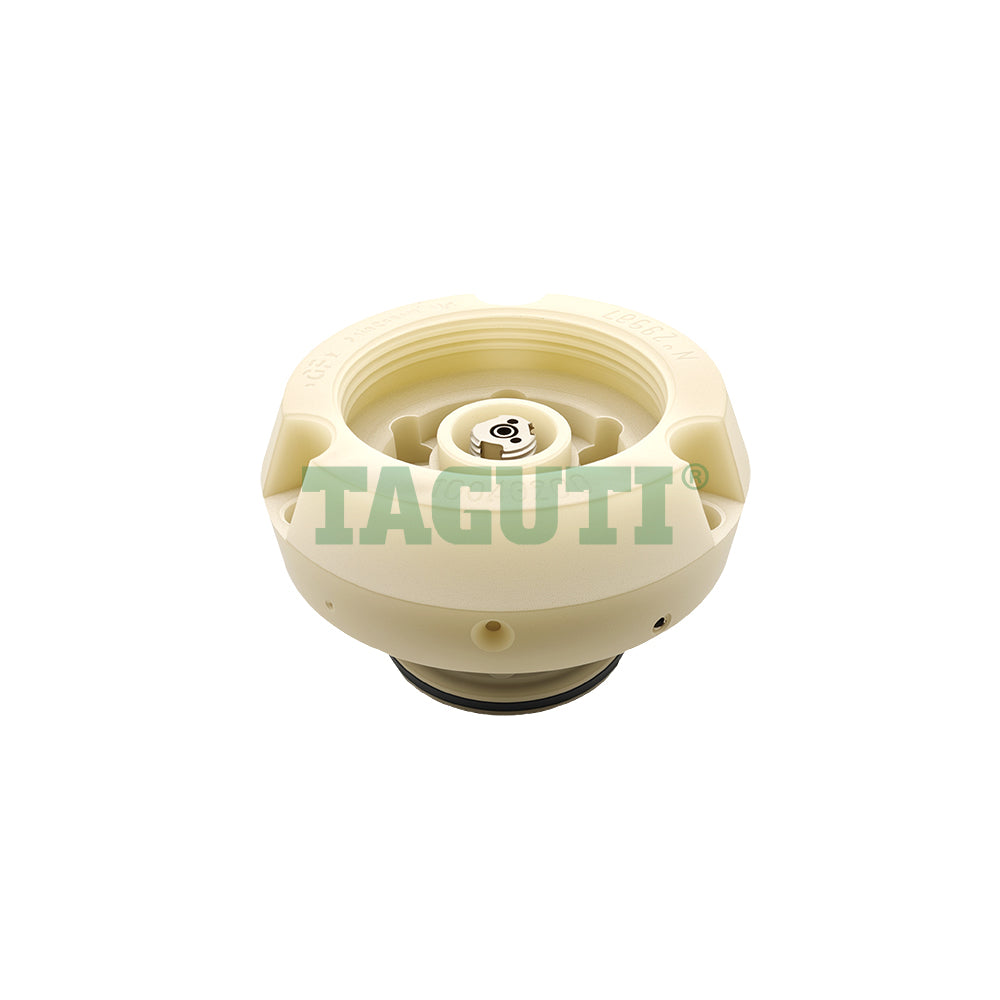

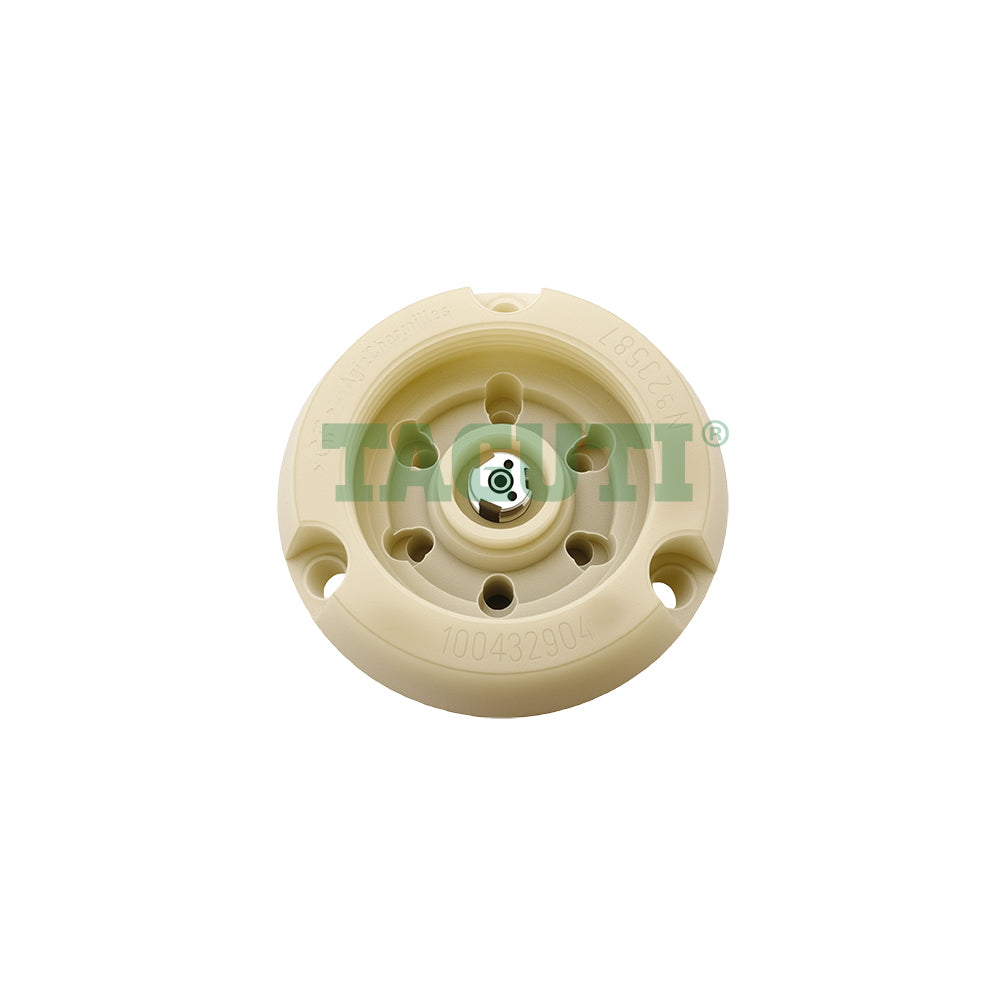

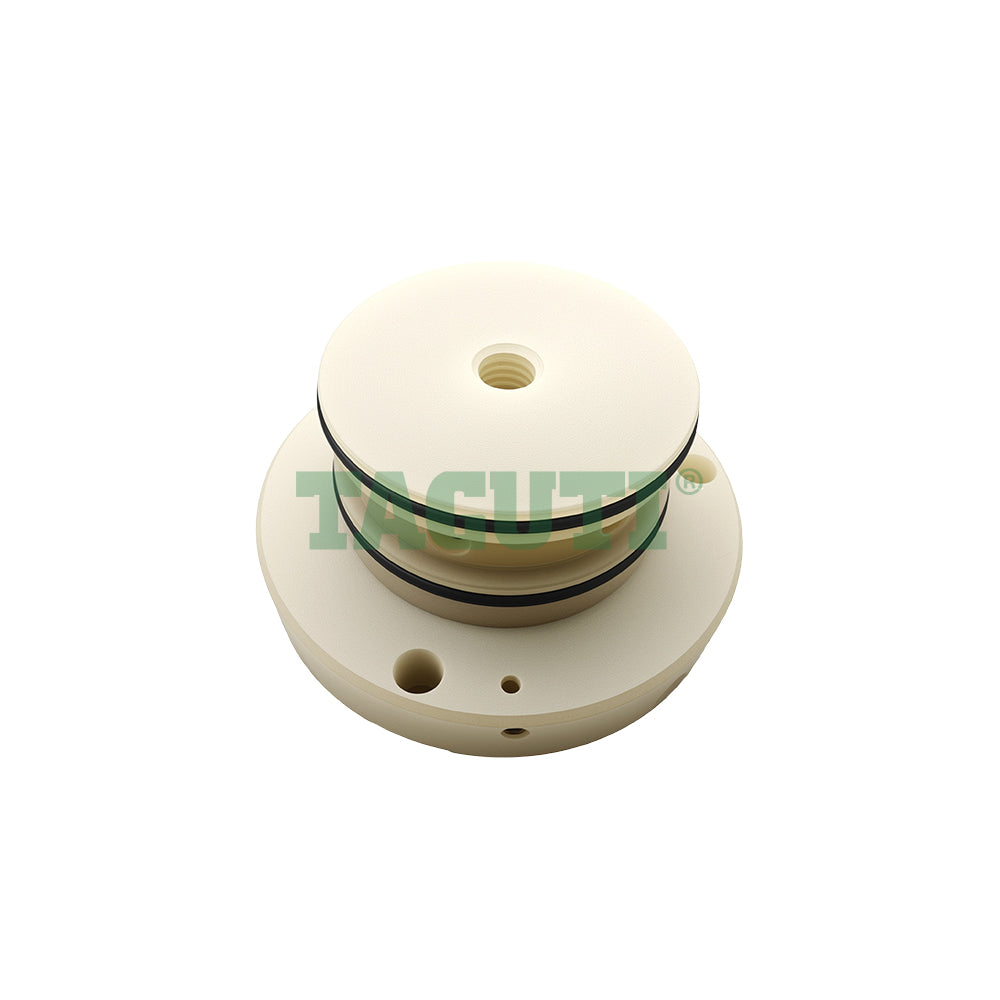

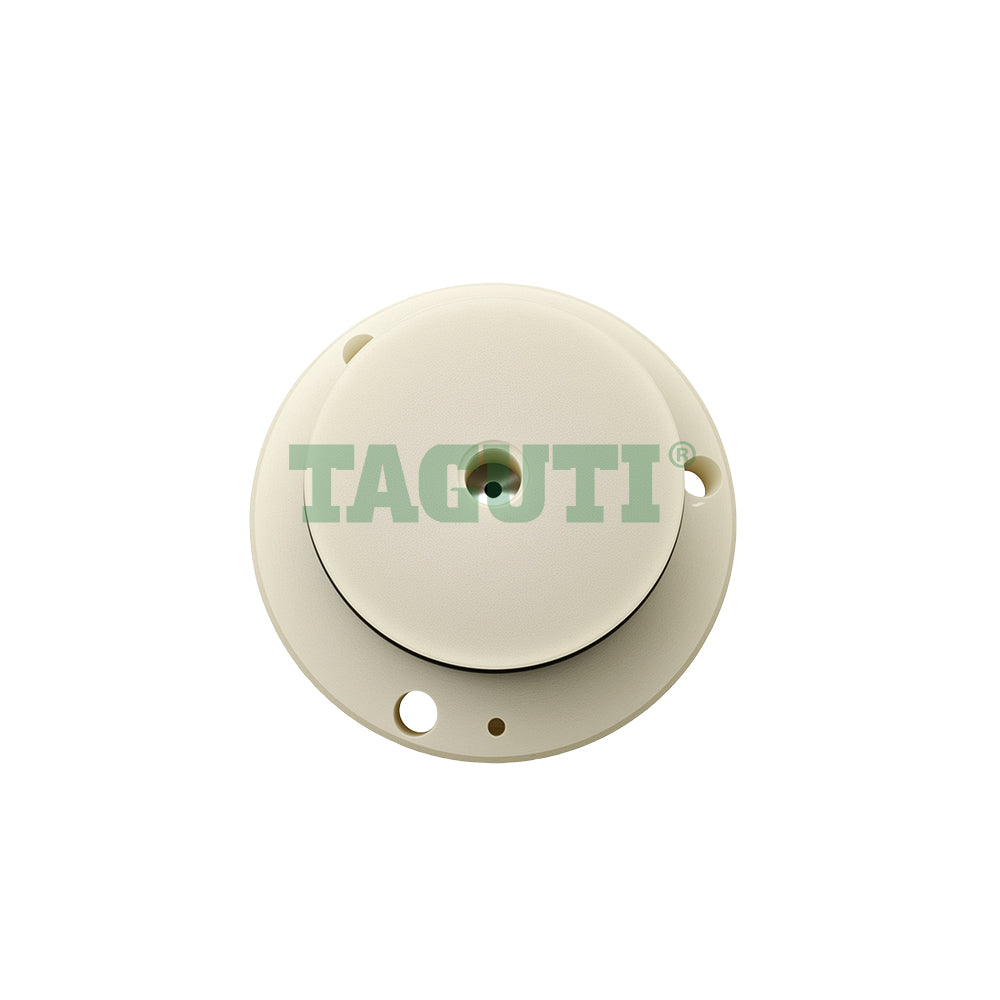

204489700 205421680 +GF+ Upper Injection Chamber Empty

Applicable to: Agie Charmilles Type: Fixed block SKU: PC

Default Title

$221.50

Description

◆ Commodity: Upper Injection Chamber Empty

◆ TAGUTI number: C423

◆ OEM numbers: 204489700, 205421680, 542.168.0, 445.578.0, 448.970.0

◆ Packing quantity: 1 pc(s)

◆ Machine type: Agie Charmilles CUT 200, CUT 200 mS, CUT 200 Sp, CUT 300, CUT 300 mS, CUT 300 Sp, CUT 400, CUT 400 Sp, CUT E 350, CUT E 600, CUT P 1250, CUT P 350, CUT P 550, CUT P 800, FI 240 CCS, FI 440 CCS,FI 640 CCS

◆ Application: Wire-cut EDM

◆ Category: Housings
