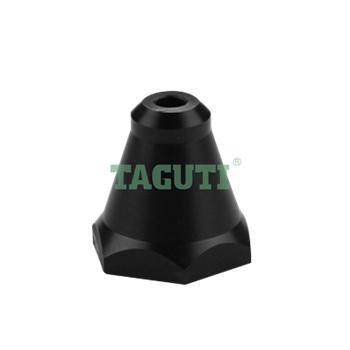

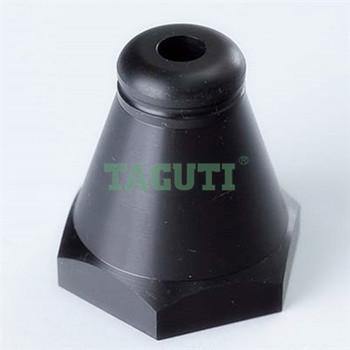

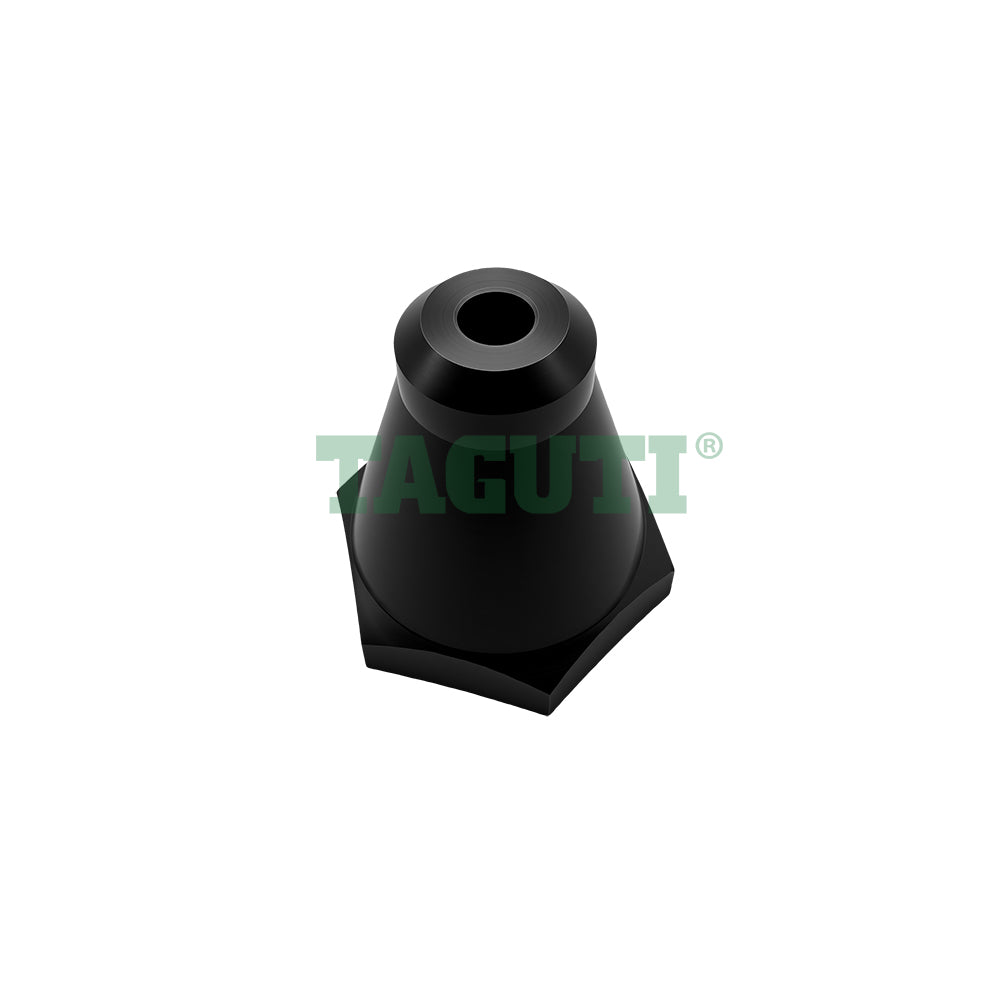

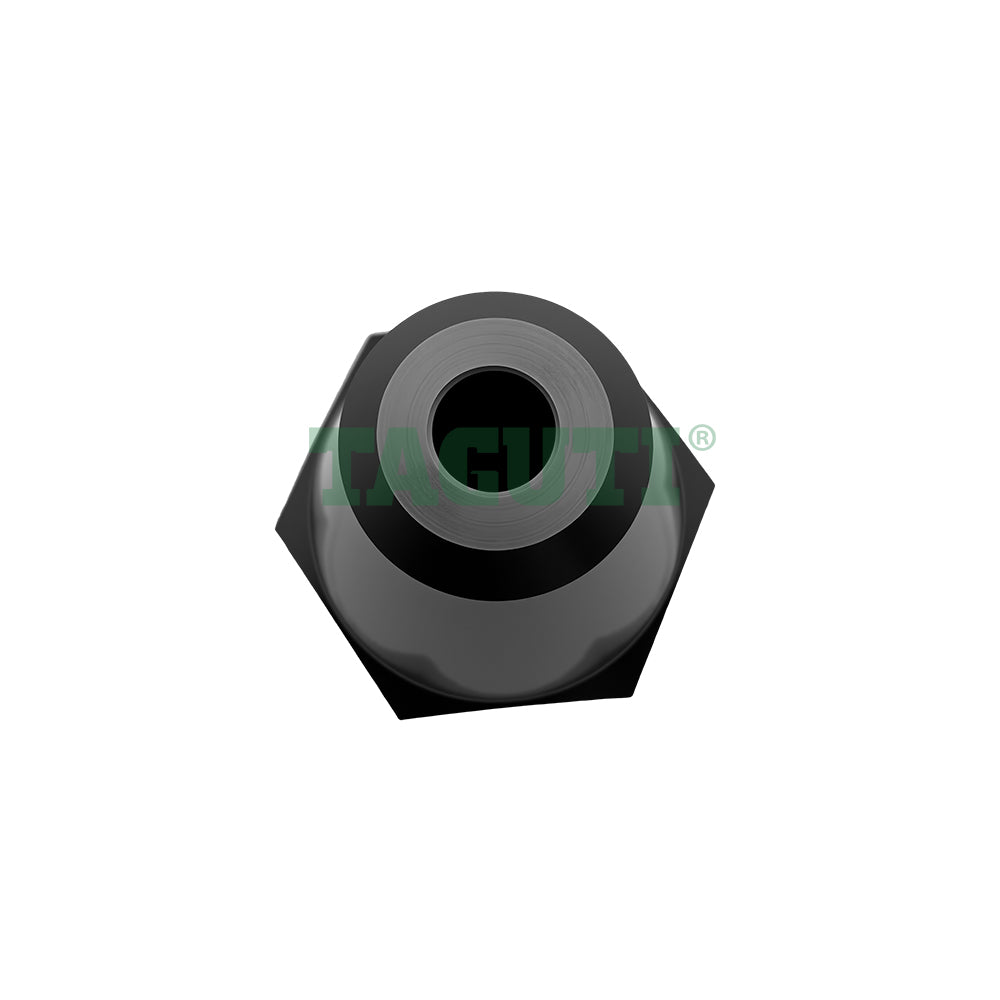

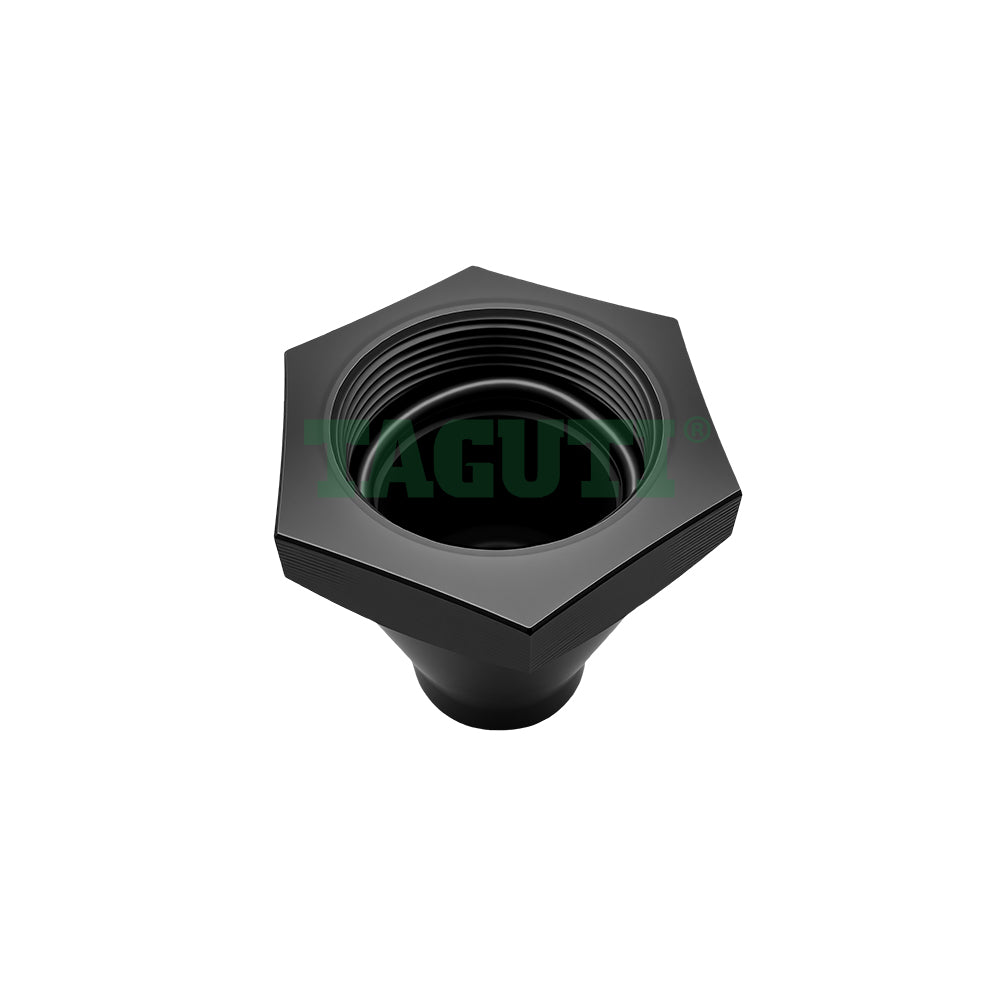

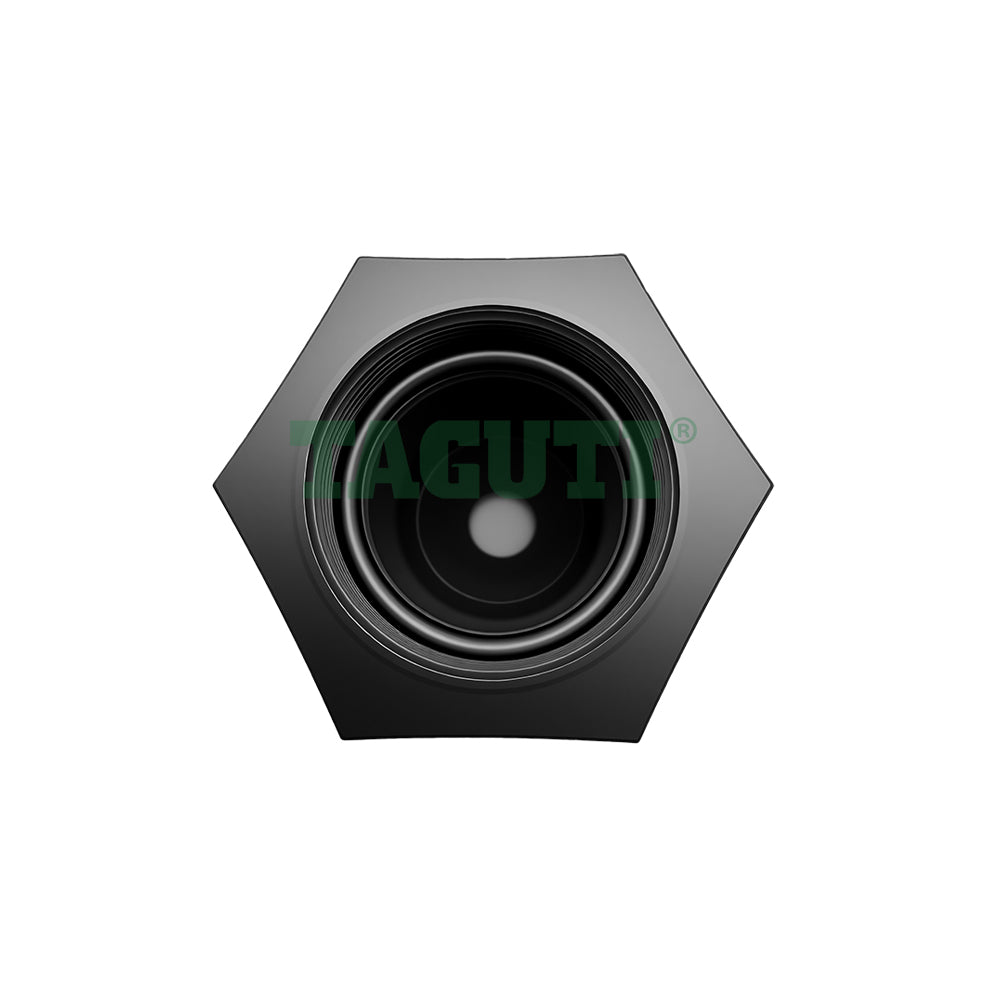

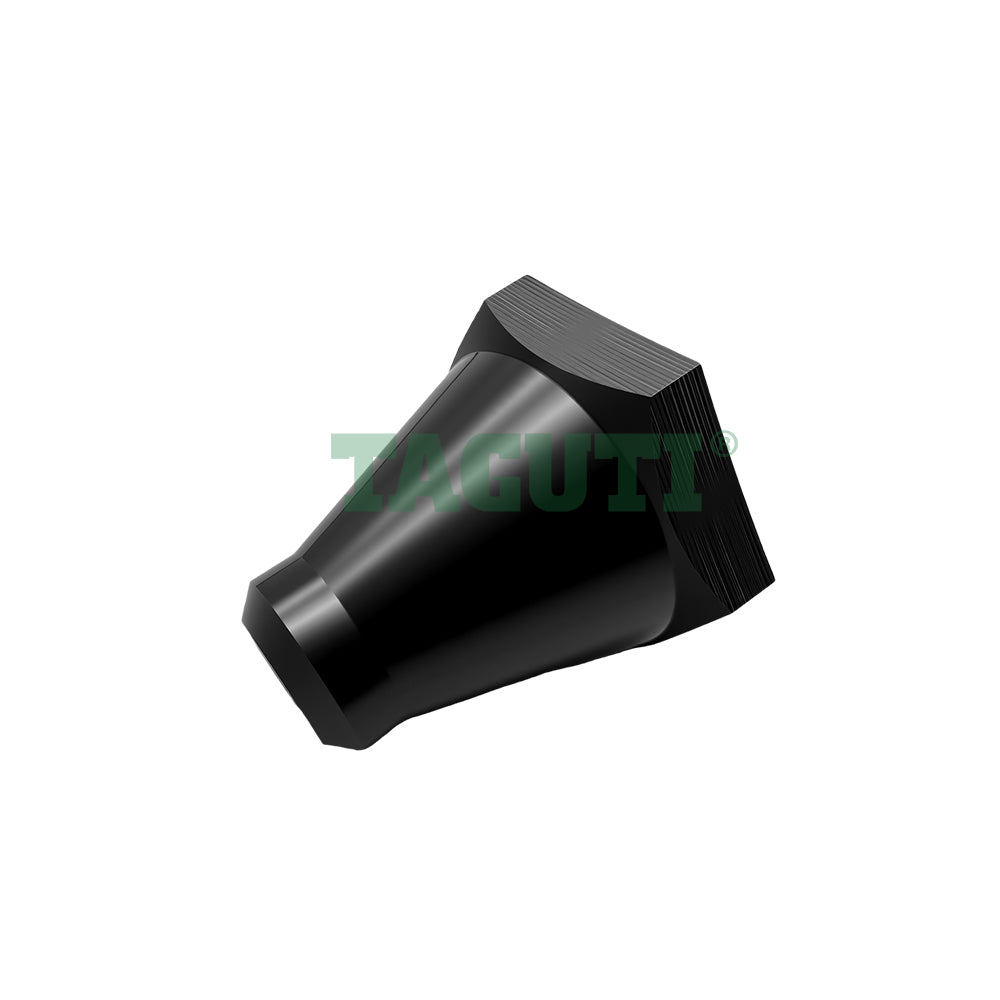

200641617 641.617 135005189 Agie Charmilles Wire EDM Nozzle

200641617 641.617 135005189 Water nozzles upper and lower 200641617 641.617135005189 possess the precise internal diameter, vertical water column outlet, high wrapping of brass wire and...

Applicable to: Agie Charmilles Type: Water nozzle SKU: PC

ID=6.0mm
