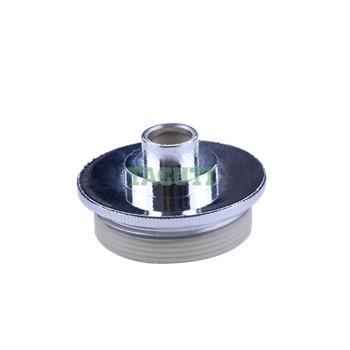

18EC130B401 Makino Wire Cutting Machine Nozzle Guard

18EC130B401 Water nozzles upper and lower possess the precise internal diameter, vertical water column outlet, high wrapping of brass wire and good cost performance in...
Applicable to: Makino Type: Water nozzle SKU: PC
Material

$29.50

18EC130B401 Water nozzles upper and lower possess the precise internal diameter, vertical water column outlet, high wrapping of brass wire and good cost performance in electrical discharge machining, suitable for high speed cutting.

◆ Commodity: Nozzle guard  ID=12.0mm  50*24*35.6*12mm

◆ TAGUTI number: N206

◆ OEM numbers: 18EC130B401

◆ Packing quantity: 1 pc(s)

◆ Machine type: Makino DUO43, DUO64, SP43, SP64, U1310, U3, U3 H.E.A.T, U32, U32i, U32j, U32K, U53, U53i, U53j, U53K, U53Tj, U6, U6 H.E.A.T, U86, UP32j, UP53j,  UPV-3, UPV-5, W32FB, W53FB

◆ Application: Wire-cut EDM

◆ Category: Flush nozzles
