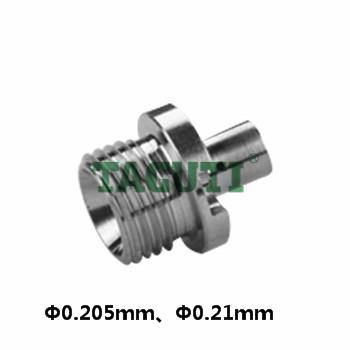

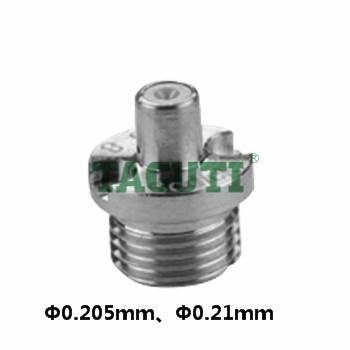

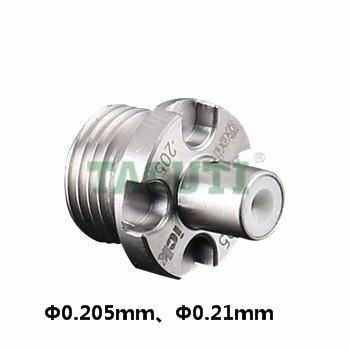

118725 0206043 118759A 0206050 Sodick EDM Wire Guide

118725 0206043,118759A 0206050 Wire guide diamond or ruby wire guide for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter,...

Applicable to: Sodick Type: Wire guides SKU: PC

ID=0.205 mm

ID=0.210 mm

$79.90

Description

118725 0206043,118759A 0206050 Wire guide diamond or ruby wire guide for wire cut EDM features with high accuracy of inner hole, mellow and full hole diameter, long service life with manual grinding of inner hole, easy to feed wire smoothly and wire is hard to break.

◆ Commodity: Wire guide AQ-1U(S)

◆ OEM number: 118725 0206043 ID=0.205mm, 118759A 0206050 ID=0.210mm

◆ Packing quantity: 1 pc(s)

◆Machine type: Sodick AD325L, AG360L, AG400L, AG600L, AQ327L, AQ360L, AQ400L, AQ537L, AQ600L, AQ750L, AQ900L, SL400G, SL400Q, SL600G, SL600Q

◆Application: Wire-cut EDM

◆Category: Wire guides

Product Tag

Tags: 0206043, 0206050, 118725, 118759a, sodick, wire-guides, wire-cut-edm
