LS-EDM Parts

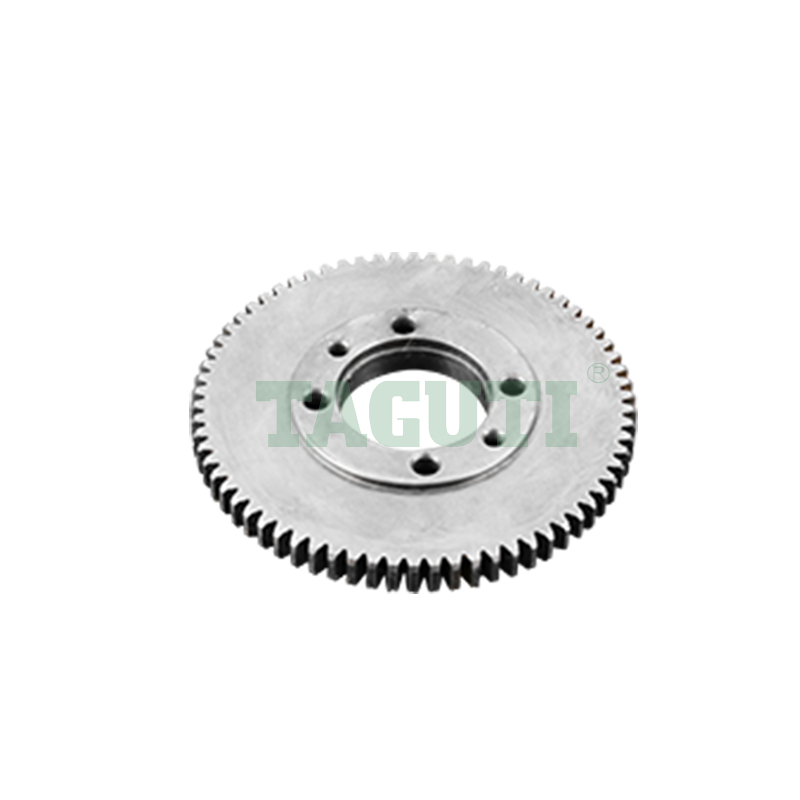

3054079 SODICK Wire Cutting EDM Gear Wheel S464

EDM Gear Wheel have the features of high quality materials, precious grinding, good concentricity, small beating, stable wire transport, high hardness and long working life...

Applicable to: Sodick Type: Roller gear, shaft, belt SKU: PC

1PC
