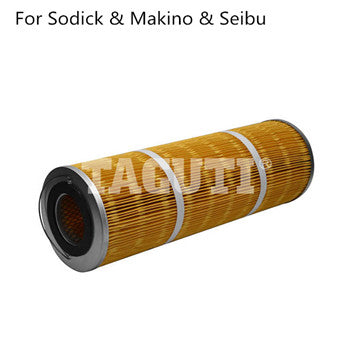

MF-1546 Sinker EDM Filter Sodick Makino Seibu DO-12 | TAGUTI

MF-1546,DO-12 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...

Applicable to: TAGUTI EDM Type: Filters SKU: PC

Default Title

$7.50

Description

MF-1546,DO-12 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-1545W-72

◆ Reference Number: MF-1546,DO-12

◆ Dimensions: Φ150Φ72450mm

◆ Connection system: Without connection nipple

◆ Flow direction: Outside to inside

◆ Filter fineness: 5 - 7µm or 10 - 15µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 0.95kg

◆ Recommended Max Pressure: 149kpa (1.5kgf/cm²)

◆ Instant Limit Working Pressure: 198kpa (2.0kgf/cm²)

◆ Applicable Machine For Sodick: Sodick NC, Sodick A, Sodick BM, Sodick EPOC, Sodick AP, Sodick W Series

◆ Applicable Machine For Makino: Makino ED-22

◆ Applicable Machine For Seibu: Seibu E, Seibu EN Series

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.

Product Tag

Tags: do-12, makino, mf-1546, seibu, sinker-edm, sodick
