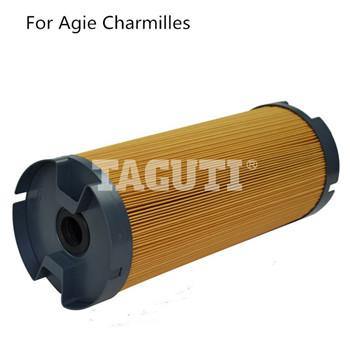

100343117 EDM Filter +GF+ H15190 / 16 H15475 343117E 04.01.031

Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$7.95

Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-32

◆ Reference Number: 04.01.031, 04.01.035, 04.01.036, 04.01.201 ,100343117, 2060130, 618.377.6, 343.117.E, H15190, H15190 / 1, H15190/16;H15475 / 1,H15190 / 10, DW-32

◆ Dimensions: Φ150*Φ33*375mm

◆ Connection system: Without connection nipple

◆ Flow direction: Outside to inside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Single bellow

◆ Net Weight: 1.10kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine: For Agie Charmilles: Agie AC 120, AC 120 F, AC 120 P, AC 150, AC 150 F, AC 150 F HSS, AC 150 HSS, AC 150 P, AC 150 P HSS, AC 170, AC 170 HSS, AC 220, AC 250, AC 250 HSS, AC 250 SF, AC 250 SF F HSS, AC 250 SF HSS, AC 270, AC 270 HSS, AC 270 SF F HSS, AC 270 SF HSS, AC 320, AC 350, AC 350 HSS, AC 370, AC 370 HSS, Charmilles FI 100, FI 1020, FI 1020, FI 1020SI, FI 200, FI 2020, FI 2020.1, FI 2020SI, FI 2030SI, FI 2030SI-TW, FI 290, FI 290 P, FI 300, FI 310, FI 330 F, FI 400, FI 4020, FI 4020.1, FI 4020SI, FI 4030SI, FI 4030SI-TW, FI 500, FI 510, FI 600, FI 6020, FI 6020.1, FI 6020SI, FI 6030SI, FI 6030SI-TW
