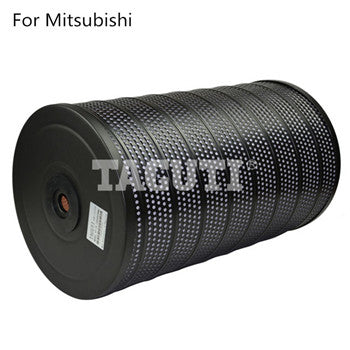

Wire Cut EDM Filter Mitsubishi X053C142G51 632402000 DW-20 YT-20

X053C142G51,A150 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$33.50

X053C142G51,A150 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-20

◆ Reference Number: 04.01.190,04.01.195,04.01.660,H31967/20,951100006,632402000,634062001,M48B634062001,X053C142G51,A150,M48B,DW-20

◆ Dimensions: Φ300*Φ29*500mm

◆ Connection system: Without connection nipple

◆ Flow direction: Inside to outside

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Macro pleats

◆ Net Weight: 6.60kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: Mitsubishi DWCXXX-C, DWCXXX-C1, DWCXXX-C2, DWCXXX-F SK, DWCXXX-F STD, DWCXXX-F1 SK, DWCXXX-F1 STD, DWCXXX-G SK, DWCXXX-G STD, DWCXXX-H SK, DWCXXX-H STD, DWCXXX-H' SK, DWCXXX-H' STD, DWCXXX-H1 AWF, DWCXXX-H1 STD, DWCXXX-HA AWF, DWCXXX-HA STD, SX10, SX20

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
