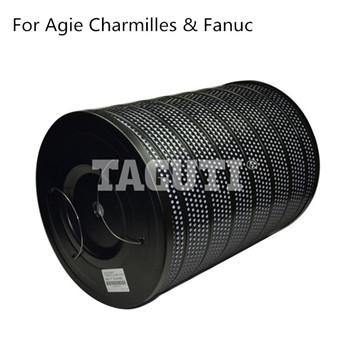

135007724 EDM Filter Agie Charmilles&Fanuc 135009852 H342090 H342240 A99L-0107-0007

35007724, 135009852 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter...
Applicable to: TAGUTI EDM Type: Filters SKU: PC
Title

$48.00

35007724, 135009852 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-240

◆ Reference Number: 04.01.488, 04.01.520, 04.04.003, 135007724, 135009852, H342090, H342090Kit, H342240, H342240 / 20Kit, 909053250, 951100041, A99L-0107-0007#6-AL, A99L-0107-0007 / 6-AL, DW-33

◆ Dimensions: Φ340*450mm

◆ Connection system: G3 / 4" central connection thread

◆ Flow direction: Dual flow

◆ Filter fineness: 3 - 5µm or 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Double bellow

◆ Net Weight: 9.30kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Agie Charmilles: Agie Charmilles CUT 20 P, CUT 200, CUT 30, CUT 300, CUT 400, FI 240 CC, FI 240 CCS, FI 240 SL, FI 240 SLP, FI 440 CC, FI 440 CCS, FI 440 SL, FI 440 SLP

◆ Applicable Machine For Fanuc: Fanuc α-0iB with AWF, α-0iB without AWF, α-0iC with AWF, α-0iC without AWF, α-0iD with AWF, α-0iD without AWF, α-0iE with AWF, α-1iB with AWF, α-1iB without AWF, α-1iC with AWF, α-1iC without AWF, α-1iD P, α-1iD with AWF, α-1iD without AWF, α-1iE with AWF, α-C400iA with AWF, α-C400iA without AWF, α-C600iA with AWF, α-C600iA without AWF

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
