EDM JIG

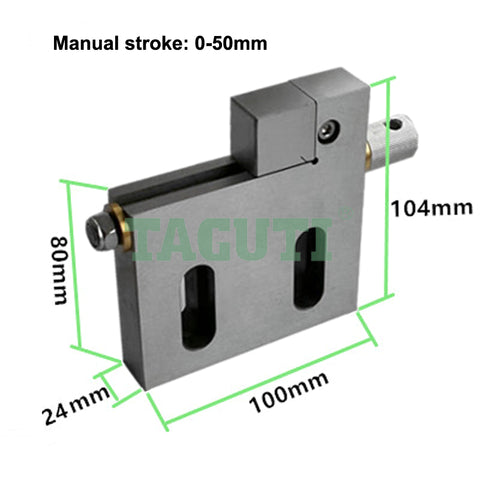

TAGUTI EDM shop sells precision wire EDM JIGs, like fixtures, EDM clamp, EDM extensions clamp, EDM heightened screws, which are used in conjunction with the wire cutting machine tool, and used for the processing of precision workpieces, in addition, our products has good stability and is not easy to deform.

Items 1 to 7 of 7 total

Select View:

Sort By:

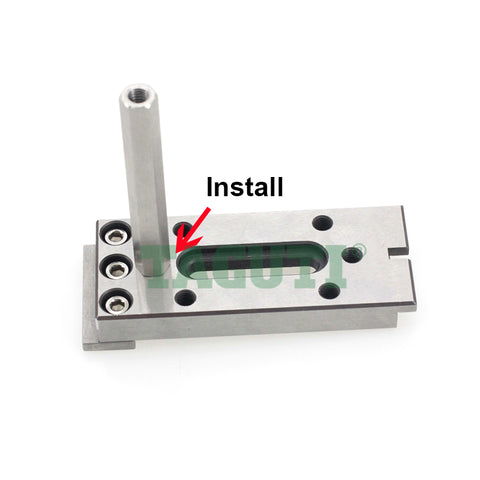

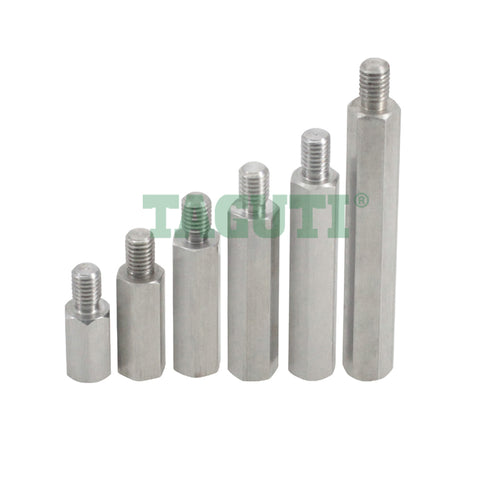

Wire Cut EDM Heightened Screws

$2.95

Wire Cut EDM Heightened Screws

Wire Cut EDM Heightened Screws are made of SUS304 material, with complete specifications, ranging from 20mm to 140mm. They can be used in combination with wire EDM Jig or EDM Extensions Clamp, which are suitable for clamping large thickness workpieces.

$2.95
